Si-PIN and InGaAs-PIN photodiodes
Wavelength range from 320 to 1700 nm
Bandwidth from DC to 200 MHz
Max. conversion gain 1.9 x 104 V/W
Min. NEP 5.2 pW/√Hz
Free space or fiber optic input
The series HCA-S-200M photoreceivers combine fast photodiodes with the proven and outstanding FEMTO HCA current amplifier technology. The HCA-S-200M is available with either a Silicon or InGaAs photodiode covering a spectral range from 320 to 1000 nm and 900 to 1700 nm, respectively. The electrical amplifier gain is 2 x 104 V/A resulting in a maximum conversion gain of 1.9 x 104 V/W at 1550 nm for the InGaAs model. The sophisticated DC coupled multistage amplifier design allows measurements from DC to a maximum bandwidth of 200 MHz corresponding to a minimum rise time of 1.8 ns. With a noise equivalent power (NEP) as low as 5.2 pW/√Hz signals with an optical power in the micro Watt range can be detected without the need for further averaging.

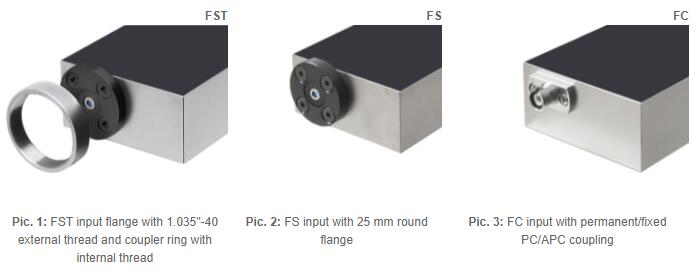

COMPATIBLE WITH OPTICAL BENCH (FREE SPACE) AND FIBER OPTICSThe free space input is designed as a 1.035"-40 threaded flange with a screw-on coupler ring (FST) or as a 25 mm round flange without thread (FS). Both types open up broad compatibility with optical accessories from various manufacturers, such as lenses, tubes, cage systems, optical adapters etc.
The FST free-space input can be converted into fiber connections (FC, FSMA) easily by simply screwing on the fiber adapter of the PRA series.
The relatively large-area detector facilitates optical focusing in free-space applications and ensures a high and stable degree of coupling when using the optionally available fiber optic adapter. For models with detector areas smaller than Ø 0.4 mm, the use of fiber adapters is only recommended to a limited extent, since coupling losses and instabilities can occur. If the focus is on high-precision fiber optic measurements, using FC-models with fixed optical fiber input will usually give the best results.
All HCA-S photo receivers with free space input (FST and FS) are equipped with UNC 8-32 and M4 threaded holes and can therefore be conveniently and stably integrated into optical systems on standard rod holders. The optionally available adapter plate PRA-PAP opens up further mounting options.
APPLICATIONSModels |
HCA-S-200M-SI-FST HCA-S-200M-SI-FS HCA-S-200M-SI-FC HCA-S-200M-SI-SMA
|
HCA-S-200M-IN-FST HCA-S-200M-IN-FS HCA-S-200M-IN-FC
|
Photodiode |
0.8 mm Ø Si-PIN | 0.3 mm Ø InGaAs-PIN (FS and FST models) |
Spectral Range | 320 – 1000 nm | 900 – 1700 nm |
Bandwidth (-3 dB) | DC – 200 MHz | DC – 200 MHz |
Rise/Fall Time (10% - 90%) | 1.8 ns | 1.8 ns |
Transimpedance Gain |
2 x 104V/A |
2 x 104V/A |
Max. Conversion Gain | 1.1 x 104 V/W(@ 800 nm) |
1.9 x 104 V/W(@ 1550 nm) |
Min NEP (@ 10 MHz) |
9.4 pW/√Hz(@ 800 nm) |
5.2 pW/√Hz(@ 1550 nm) |
Datasheet | 1.94MB | 1.16MB |
Output voltage ±1.2 V (for linear operation @ 50 Ω load). Offset adjustable by potentiometer. Output short-circuit protected. The photoreceivers with free space input come with threaded M4 and 8-32 mounting holes for use with standard mounting posts. Power supply ±15 V via 3-pin Lemo® socket. A mating connector is provided with the device. Optional power supply PS-15 available. For further information please view the datasheet or contact FEMTO.
