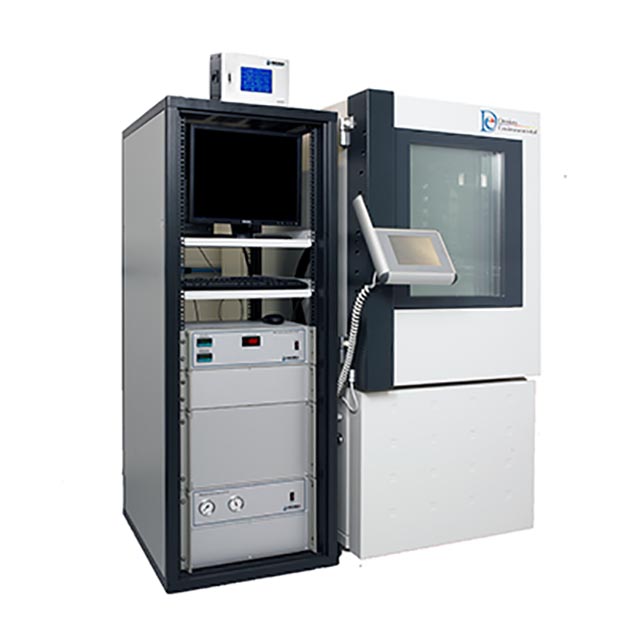

Automatic Humidity Probe Calibrator - Michell HG10

Updated:2023-10-13

Brand: PST/Michell
Model: Michell HG10
Product description: The Michell HG10 Humidity Calibration System is a computer-controlled automatic calibration system for humidity sensors. The HG10 is capable of repeatable generation of temperature and relative humidi
Data download

Feedback
WeChat

QQ

Online Service

product details

High Precision Chilled Mirror Hygrometer - Michell S8000 RS Description：

Product Manual

Reference Hygrometer Controlled Humidity Generation

Features

Automatic calibration system with reference hygrometer

Wide range of humidity generation 1 to 95% RH, -50 to +50°Cdp

High accuracy ±0.1°C fundamental reference

User-configurable temperature and humidity profiling allows calibration cycles to be run without constant supervision

Very fast changes between generated relative humidity points

The Michell HG10 Humidity Calibration System is a computer-controlled automatic calibration system for humidity sensors. The HG10 is capable of repeatable generation of temperature and relative humidity set points over the range 1 to 95% RH (-50 to +50°Cdp) at temperatures of +20 to +50°C with excellent stability. The supplied chilled mirror reference instrument provides traceability directly to national standards and makes the system suitable for use in high-level calibration laboratories.

The supplied PC software allows the creation of automatic calibration programs, for evaluating the performance of humidity sensors over a range of operating conditions. The measured values from the chilled mirror reference are used in a closed control loop to enable repeatable set point generation, time and time again.

Specification

General
Enclosure	19” Rack System, H= 2.1m
Power Supply	100 to 115 V or 220 to 240 V 50/60Hz
Pressure Swing Dryer
Gas Output	Flow: 7 Nl/min Pressure: 0.68 barg Moisture Content: <1ppm_V (<-75°Cdp)
Required Gas Supply	Flow: 10 Nl/min Pressure: 5 to 7 barg Moisture Content: Oil and liquid water free
Type	Twin column desiccant, pressure swing
Desiccant	4 Ångström Molecular sieve bead (4-8 mesh)
Timer	Motorized cam
Operating Temperature	+5 to +35°C
Generator
Generation Range	Humidity: 1 to 95% RH (-50 to +50°Cdp) Temperature: Dependant on temperature chamber
Generated Gas Output	Air 2 Nl/min @ 0.5 barg via heat traced line
Dual Stage MFC Mixing	Dual mass flow controllers
Power Consumption	550 V A maximum
Dual Stage MFC Mixing	Dual mass flow controllers
Operating Temperature	+5 to +40°C; 10 to 90% RH
Enclosure	19" Rack System, H= 2.1m
Control System	Closed loop feedback
S8000 Dew-Point Sensor Performance
Performance
Accuracy	±0.1°C (±0.18°F)
Reproducibility	±0.05°C (±0.09°F)
Measurement technology	Chilled Mirror
Sensor	2-Stage	High Temp PEEK	Climatic head
Dew-point range	–40°Cdp@ sensor temp of +20°C +90°Cdp @ sensor temp of +90°C	–40°Cdp @ sensor temp of +20°C +120°Cdp @ sensor temp of +120°C	–10°Cdp @ sensor temp of +20°C +120°Cdp @ sensor temp of +120°C
Temperature range	–40 to +90°C	–40 to +120°C	–40 to +120°C
%RH range	<0.5 to 100%	<0.5 to 100%	10 to 100%
Min measured dew point @ 20°C	–40°C	–40°C	–10°C
Mirror material options	Gold plated copper (standard), gold stud, Platinum stud**
Sensor body material options	Acetal (standard), high temperature PEEK, Anodized aluminum**
Response speed	1°C/sec (1.8°F/sec) plus settling time
Operating pressure	20 barg (290 psig) standard pressure High version: 250 barg (3625 psig) max
Remote PRT
Temperature measurement	4 wire Pt100, 1/10 DIN class B
Accuracy	±0.1°C (±0.18°F)
Cable length	2m (6.6ft) (250m (820ft) max)
Optional Remote Pressure Sensor
Measurement range	0 to 25 bara (0 to 377 psia)
Accuracy	0.25% Full Scale
Measurement units	psia, bara, KPa or MPag
Pressure transducer thread	1/8” NPT
Monitor
Resolution	User-selectable to 0.001 dependant on parameter
Measurement units	°C and °F for dew point and temperature %RH, g/m3, g/kg, ppm , %Vol, ppm (SF ), for calculated V W 6 humidities
Outputs	Analog Digital: 3 channels, user selectable 4–20 mA, 0–20 mA or 0–1 V Modbus RTU over USB and optionally Modbus RTU over RS232 or RS485, or Modbus TCP over ethernet. Alarm: Two volt free changeover contacts, one process alarm, one fault alarm; 1 A @ 30 V DC
HMI	5.7” LCD with touchscreen
Data logging	SD Card (512Mb supplied) and USB interface SD Card (FAT-16) – 2Gb max. that allows 24 million logs or 560 days, logging at 2 second intervals
Environmental conditions	–20 to +50°C (–4 to +122°F)
Power supply	85 to 264 V AC, 47/63 Hz
Power consumption	100 V A
Mechanical specifications
Dimensions (instrument)	190 x 255 x 215mm (7.5 x 10.0 x 8.4”) h x w x d
Dimensions (sensor)	ø45 x 128mm with M36 x 1.5-6g mounting thread
Weight	4.2kg (9.26lbs)
Cable lengths	3, 5 or 10m (9.8, 16.4 or 32.8ft)
General
Storage temperature	–40 to +60°C (–40 to +140°F)
Detection system	Single optics detection system with auto adjustment
Calibration	4-point traceable in-house calibration as standard; UKAS accredited calibrations optional – please consult Michell Instruments
