Measuring heat flux, users may wish to regularly check their sensor performance. A quick check is now possible with HTR02 series plus some accessories that most laboratories will have in-house. The HTR02 series heaters have a well characterized a traceable surface area and electrical resistance.

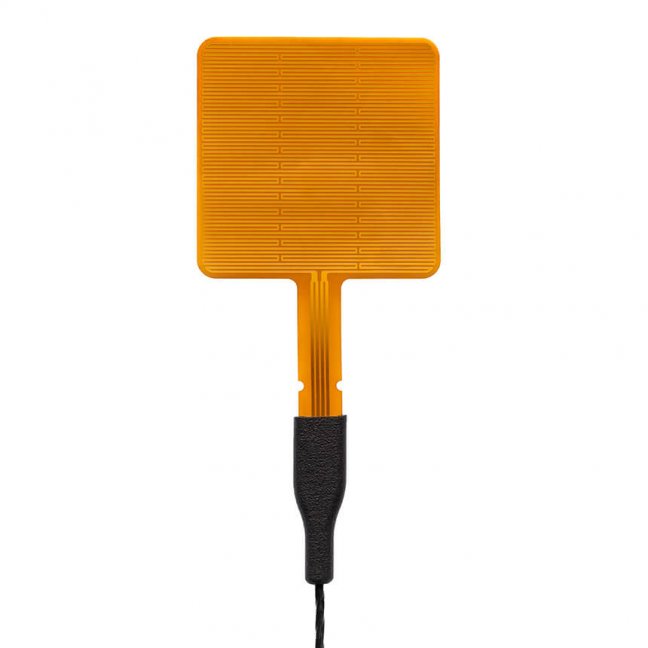

HTR02 series is a foil heater. Either it can be used in combination with foil heat flux sensors such as FHF05 series for test purposes or as a general-purpose heater.
1、makes it possible to perform a simple test
2、guarantees sensor stability
3、matches all models of FHF05 series heat flux sensors
4、HTR02 series heaters have a well characterized and traceable surface area and electrical resistance
5、supplied with product certificate stating surface area in [m²] and heater resistance in [Ω]
Power supply voltage | 12 VDC |
Effective heater area per model | : |
50X50 | 2381 x 10⁻⁶ m² |
85X85 | 7022 x 10⁻⁶ m² |
Heater electrical resistance per model | : |
50X50 | 120 Ω (nominal) |
85X85 | 40 Ω (nominal) |
Heater thickness | 0.1 x 10⁻³ m |
Outer dimensions foil per model | : |
50X50 | (50 x 50) x 10⁻³ m |
85×85 | (85 x 85) x 10⁻³ m |
Rated operating temperature range – continuous use | -40 to +150 °C |
Heater rated power supply | 9 to 15 VDC |
Standard cable length | 2 m (2 x 2 wires) |
Certificate | supplied with a certificate stating surface area in [m²] and heater resistance in [Ω] |

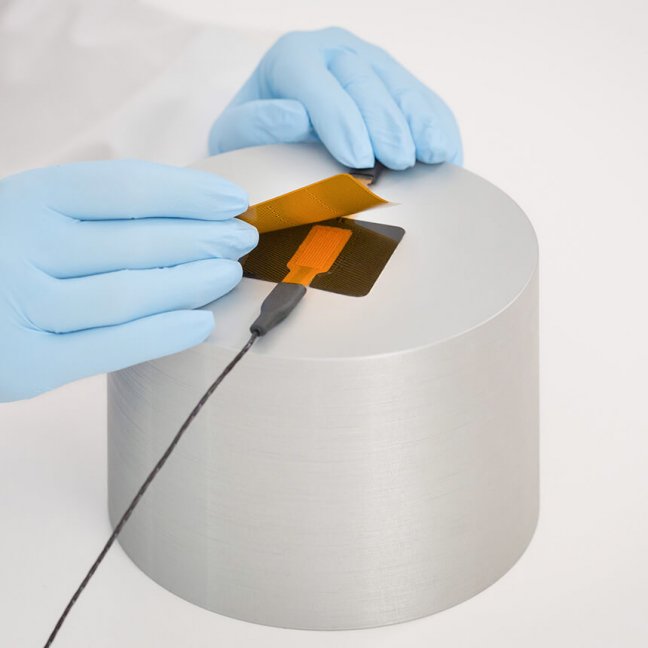

Requirements for testing | metal heat sink > 1 kg; power supply 12 VDC; 0.2 A; insulation material; voltage measurement; contact material such as glycerol or toothpaste |
Options |
・with 5 or 10 m cable length ・with 2, 5 or 10 m cable length ・with a separate cable in 2, 5 or 10 m |
