Ultra sensitive sensor for measurement of small heat fluxes

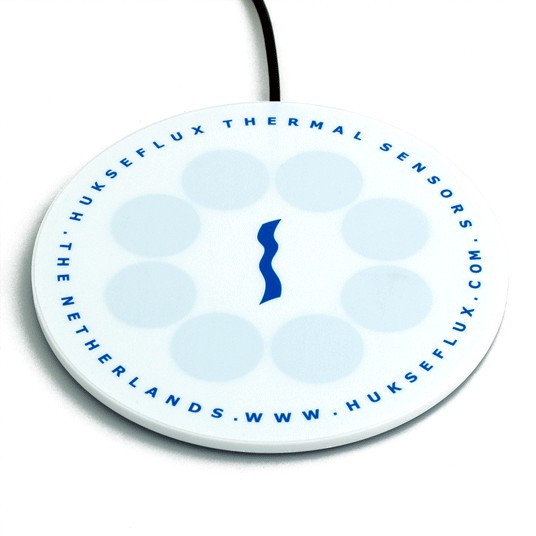

HFP03 measures heat flux through the object in which it is incorporated or on which it is mounted, in W/m². HFP03 is specifically suitable for measurement of small flux levels, in the order of less than 1 W/m², for instance in geothermal applications. The sensor in HFP03 is a thermopile. This thermopile measures the temperature difference across the ceramics-plastic composite body of HFP03. A thermopile is a passive sensor; it does not require power. Using HFP03 is easy. It can be connected directly to commonly used data logging systems. The heat flux in W/m² is calculated by dividing the HFP03 output, a small voltage, by the sensitivity. The sensitivity is provided with HFP03 on its calibration certificate.
1、Extremely small heat fluxes
2、Geothermal heat flux
1、Building physics / insulation, thermal comfort and energy budget measurement
2、Meteorology / surface energy flux measurement
3、Scientific research / heat and heat transfer measurement
Measurand | heat flux |
Measurement range | -2000 to +2000 W/m² |
Sensitivity (nominal) | 500 x 10⁻⁶ V/(W/m²) |
Sensing area | 64 x 10⁻⁴ m² |
Sensor thermal resistance | 71 x 10⁻⁴ K/(W/m²) |
Sensor thickness | 5.4 x 10⁻³ m |
Sensor resistance range | 10 to 32 Ω |
Uncertainty of calibration | ± 6 % (k = 2) |
Rated operating temperature range | -30 to +70 °C |
Cable diameter | 4 x 10⁻³ m |
IP protection class | IP67 |
Standard cable length | 5 m |
Options | ・Longer cable, in multiples of 5 m, cable lengths above 20 m in multiples of 10 |
