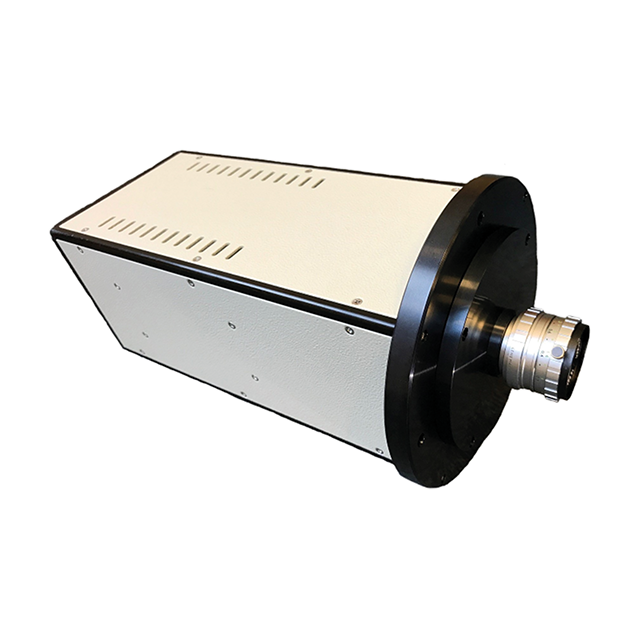

IPD Photon Counting Sensor

Updated:2023-01-31

Brand: PHOTEK
Model: IPD
Product description: Based on a true single photon counting sensor that uniquely provides simultaneous position and timing information for each detected photon. The IPD3 is perfect for continuous imaging of processes with
Data download

Feedback
WeChat

QQ

Online Service

product details

IPD Photon Counting Sensor description：

The Photek IPD3 is based on a true single photon counting sensor that uniquely provides simultaneous position and timing information for each detected photon. The camera outputs a continuous stream of photon detection location and time (x, y, t), with a spatial resolution of 100 μm and a timing resolution of 10 ns. The IPD3 is perfect for continuous imaging of processes with very low light levels over wide fields. The high resolution time tagging enables 100% duty cycle imaging of time resolved events. The IPD3 is highly customisable, with multiple options of image plane formats, high sensitivity photocathodes and accessories that can be combined into complete turn-key systems. Operation has never been easier thanks to the plug-n-play USB interface, fully integrated power supply and intuitive Image32 software.

IPD Photon Counting Sensor：

Features：

Noiseless photon counting

High resolution position and time stamp for each photon

Continuous data acquisition

Variety of high QE, low noise photocathodes covering full UV to visible wavelengths

Fully integrated high voltage power supply

USB interface

Easy to use software

Applications：

Wide Field Time Correlated Single Photon Counting

Bioluminescence Imaging of Luciferase and Aequorin

Chemiluminescence Imaging

ATP-Bioluminescence Studies

Time resolved spectroscopy

Fluorescence Lifetime Imaging

Missile Warning

Astronomy

LIDAR

Microtitre plate readers

Autoradiography

IPD Photon Counting Sensor product line：

PHOTEK PART NO.	DESCRIPTION
IPD	Image Photon Detector Camera System
