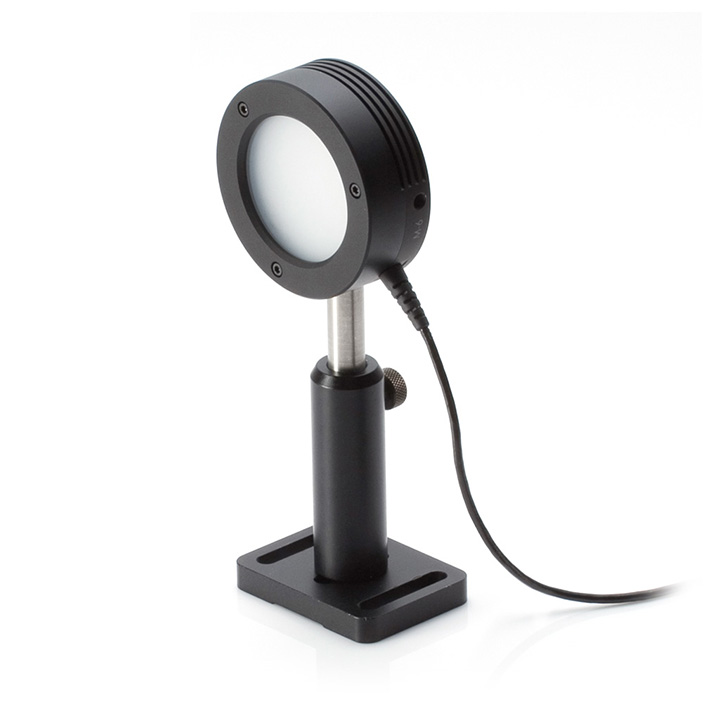

Coherent J-50MB-YAG-1528 Energy Sensor

Coherent J-50MB-YAG-1528 Energy Sensor：

Datasheet

The J-50MB-YAG-1528 energy sensor is a higher repetition rate model than the standard J-50MB-YAG. This sensor is specifically design for high energy and high peak power lasers operating at relatively low repetition rates, such as those based upon Nd:YAG, Ruby, Ho:YAG, and Erbium. The J-50MB-YAG can be used with beams up to 35mm in diameter and can work at 1064 nm, 532 nm, 355 nm, and 266 nm without the need to change diffusers or self-calibrate the sensor.

This sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

A USB-direct (PN 1191439) model is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 1.5 mJ - 3J at up to 300 pps.

Key Features:

190 nm to 2.1 µm spectral range

35 mm diameter active area

5 mJ - 3J energy range

300 pps repetition rate operation

ISO 17025 accredited
