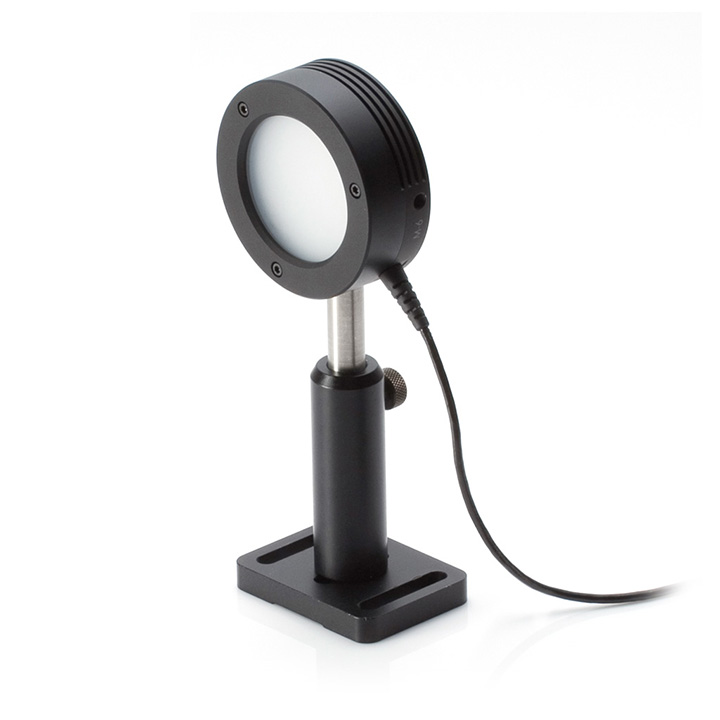

Coherent J-50MB-YAG-1535 Energy Sensor

Updated:2024-11-25

Views:142

  • Brand: Coherent
  • Model: J-50MB-YAG-1535
  • Description: The J-50MB-YAG-1535 energy sensor can handle higher pulse energy and longer laser pulse lengths than the standard J-50MB-YAG. This sensor is specifically design for high energy and high peak power la
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent J-50MB-YAG-1535 Energy Sensor Description:

Datasheet

The J-50MB-YAG-1535 energy sensor can handle higher pulse energy and longer laser pulse lengths than the standard J-50MB-YAG. This sensor is specifically design for high energy and high peak power lasers operating at relatively low repetition rates, such as those based upon Nd:YAG, Ruby, Ho:YAG, and Erbium. The J-50MB-YAG can be used with beams up to 35mm in diameter and can work at 1064 nm, 532 nm, 355 nm, and 266 nm without the need to change diffusers or self-calibrate the sensor.

This sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

USB-direct (PN 1191438) and RS232-direct (PN 1219962) models are available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 12 mJ to 15J at up to 10 pps.

Key Features:

190 nm to 2.1 µm spectral range

35 mm diameter active area

12 mJ to 15J energy range

10 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type
J DB-25
Active Area Diameter
50 mm
Detector Coating
MaxBlack
Energy Range
12 mJ to 15J
Noise Equivalent Energy
<50 µJ
Maximum Average Power (watts)
20
Maximum Pulse Width (microseconds)
2000
Maximum Energy Density (millijoules per square centimeter)
14 (at 1064 nm, 10 ns) 2.8 (at 532 nm, 10 ns) 1 (at 266 nm, 10 ns)
Diffuser
IR
Calibration Uncertainty (%)(k=2)
±2 (1064nm); ±3 (2940nm)
Energy Linearity (%)
±3.5
Calibration Wavelength (nanometers)
1064 & 2940
Cable Length (meters)
2.5
Maximum Beam Size (millimeters)
30
