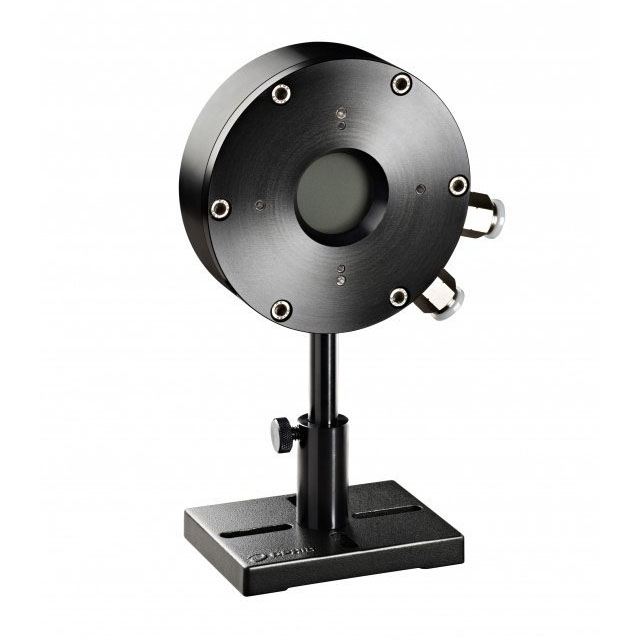

L1500W-BB-50 7Z02752 High power water-cooled thermal sensor

Updated:2023-06-21

Brand: Ophir
Model:L1500W-BB-50
Description: The L1500W-BB-50 is a water cooled thermal power/energy laser measurement sensor with a 50mm aperture. It can measure power from 15W to 1500W and energy from 500mJ to 200J. It has the spectrally flat
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L1500W-BB-50 High power water-cooled thermal sensor：

The 1000W-LP2-34 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 34mm aperture and can measure power from 5W to 1000W and energy from 400mJ to 300J. Its high damage threshold LP2 coating covers the spectral range 0.35 – 2.2µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

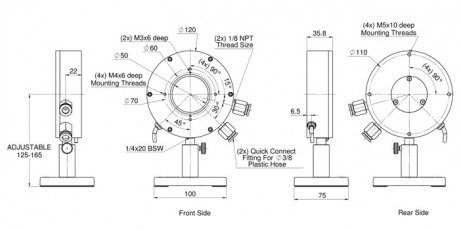

L1500W-BB-50 Drawing of high power water cooled thermal sensor：

L1500W-BB-50 Drawing

L1500W-BB-50 Specification for high power water cooled thermal sensor：

Absorber Type	Broadband
Aperture	Ø50mm
Spectral Range	0.19-20µm
Power Range	15W-1500W
Energy Range	500mJ-200J
Backscattered Power	N.A.
Dimensions	Ø120 W x 36 D (mm)
Max Pulse Energy	200J
Max Average Power Density	4kW/cm²
Response Time	2.7 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	1500W
BeamTrack Functions	N.A.
Compliance	CE, China RoHS
