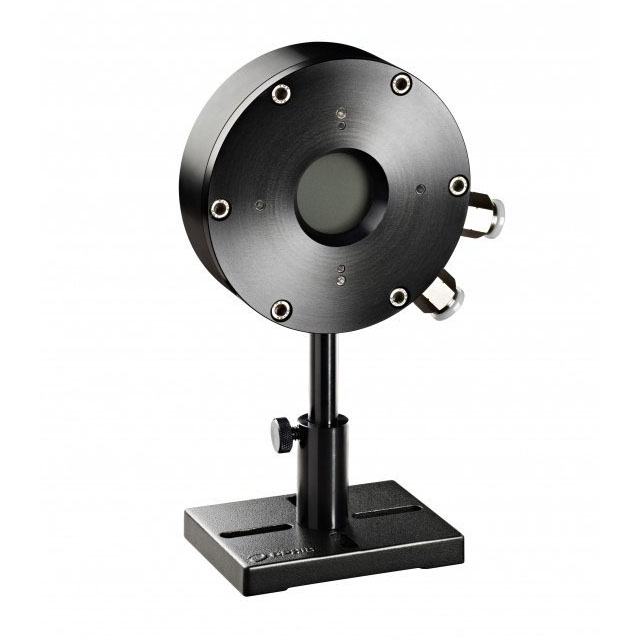

L1500W-LP2-50 7Z02772 High power water-cooled thermal sensor

Updated:2025-03-13

Brand: Ophir
Model: L1500W-LP2-50
Description: The L1500W-LP2-50 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 15W to 1500W and energ
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L1500W-BB-50 High power water-cooled thermal sensor：

The L1500W-LP2-50 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 15W to 1500W and energy from 500mJ to 200J. Its high damage threshold LP2 coating covers the spectral range 0.35 – 2.2µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

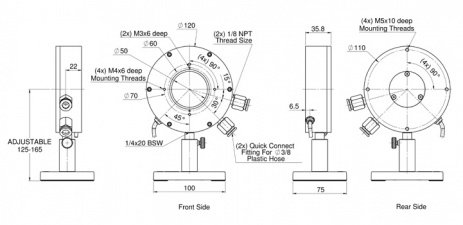

L1500W-BB-50 Drawing of high power water cooled thermal sensor：

L1500W-BB-50 Drawing

L1500W-BB-50 Specification for high power water cooled thermal sensor：

Absorber Type	LP2
Aperture	Ø50mm
Spectral Range	0.35-2.2µm
Power Range	15W-1500W
Energy Range	500mJ-200J
Backscattered Power	N.A.
Dimensions	Ø120 W x 36 D (mm)
Max Pulse Energy	200J
Max Average Power Density	5.5kW/cm²
Response Time	2.7 s
Max Energy Density (for <100ns)	0.1J/cm²
Max Energy Density (for 2ms)	130J/cm²
Max Average Power	1500W
BeamTrack Functions	N.A.
Compliance	CE, China RoHS
