L40(200)A-EX-50 P/N7Z02795 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: L40(200)A-EX-50
Description: The L40(200)A-EX-50 is a thermal power/energy laser measurement sensor for use with excimer lasers. It has a 50mm aperture and can measure from 300mW to 35W continuously and to 200W intermittently. It
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L40(200)A-EX-50 P/N7Z02795 Laser Measurement Sensor Introduction：

The L40(200)A-EX-50 is a thermal power/energy laser measurement sensor for use with excimer lasers. It has a 50mm aperture and can measure from 300mW to 35W continuously and to 200W intermittently. It can measure energy from 100mJ to 200J. Its EX absorber has a damage threshold of 0.5J/cm² and covers the spectral range from 0.15 - 0.7um and 10.6µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

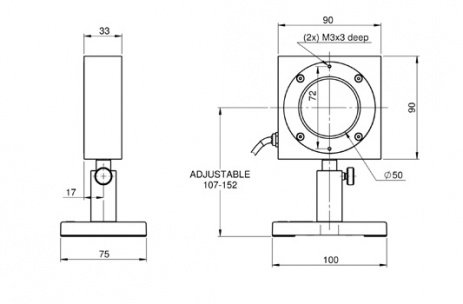

L40(200)A-EX-50 P/N7Z02795 Laser Measurement Sensor Drawing：

L40(200)A-EX-50 Drawing

L40(200)A-EX-50 P/N7Z02795 Laser Measurement Sensor Specification：

Absorber Type	EX
Aperture	Ø50mm
Spectral Range	0.15-0.7µm, 10.6µm
Power Range	300mW-200W
Energy Range	100mJ-200J
Dimensions	90 L x 90 W x 33 D (mm)
Max Pulse Energy	200J
Max Average Power Density	1.5kW/cm²
Response Time	2.5 s
Max Energy Density (for <100ns)	0.5J/cm²
Max Energy Density (for 2ms)	12J/cm²
Max Average Power	200W
