L50(150)A-BB-35 P/N7Z07118 Laser Measurement Sensor

Updated:2023-05-23

Brand: Ophir
Model: L50(150)A-BB-35
Description: The L50(150)A-BB-35 is a general purpose thermal power/energy laser measurement sensor with a 35mm aperture. It can measure from 100mW to 50W continuously and to 150W intermittently. It can measure en
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L50(150)A-BB-35 P/N7Z07118 Laser Measurement Sensor Introduction：

The L50(150)A-BB-35 is a general purpose thermal power/energy laser measurement sensor with a 35mm aperture. It can measure from 100mW to 50W continuously and to 150W intermittently. It can measure energy from 40mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

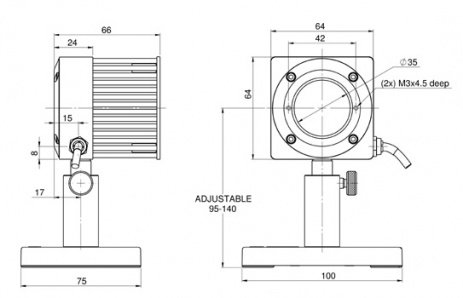

L50(150)A-BB-35 P/N7Z07118 Laser Measurement Sensor Drawing：

L50(150)A-BB-35 Drawing

L50(150)A-BB-35 P/N7Z07118 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø35mm
Spectral Range	0.19-11µm
Power Range	100mW-150W
Energy Range	40mJ-300J
Dimensions	64 L x 64 W x 66 D (mm)
Max Pulse Energy	300J
Max Average Power Density	12kW/cm²
Response Time	2 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	150W
