30(150)A-LP2-18 P/N7Z02786 Laser Measurement Sensor

Updated:2023-05-23

Brand: Ophir
Model: 30(150)A-LP2-18
Product description: The 30(150)A-LP2-18 is a thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has an 17.5mm aperture and can measure from 30mW to 30W continuously and to 150W
Data download

Feedback
WeChat

QQ

Online Service

product details

30(150)A-LP2-18 P/N7Z02786 Laser Measurement Sensor Introduction：

The 30(150)A-LP2-18 is a thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has an 17.5mm aperture and can measure from 30mW to 30W continuously and to 150W intermittently. It can measure energy from 20mJ to 300J. Its high damage threshold LP2 absorber covers the spectral range from 0.25 to 2.2µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

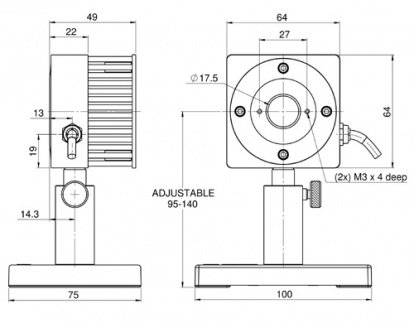

30(150)A-LP2-18 P/N7Z02786 Laser Measurement Sensor Drawing：

30(150)A-LP2-18 Drawing

30(150)A-LP2-18 P/N7Z02786 Laser Measurement Sensor Specification：

Absorber Type	LP2
Aperture	Ø17.5mm
Spectral Range	0.25-2.2µm
Power Range	30mW-150W
Energy Range	20mJ-300J
Dimensions	64 L x 64 W x 49 D (mm)
Max Pulse Energy	300J
Max Average Power Density	33kW/cm²
Response Time	1.2 s
Max Energy Density (for <100ns)	0.1J/cm²
Max Energy Density (for 2ms)	130J/cm²
Max Average Power	150W
