L50(300)A-PF-65 P/N7Z02743 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: L50(300)A-PF-65
Description: The L50(300)A-PF-65 is a thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 65mm aperture and can measure from 400mW to 300W intermittently and to 50W continuous
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L50(300)A-PF-65 P/N7Z02743 Laser Measurement Sensor Introduction：

The L50(300)A-PF-65 is a thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 65mm aperture and can measure from 400mW to 300W intermittently and to 50W continuously. It measures energy from 200mJ to 300J. It has a damage threshold of up to 3J/cm² for ns pulses and covers the spectral range from 0.15 to 20µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

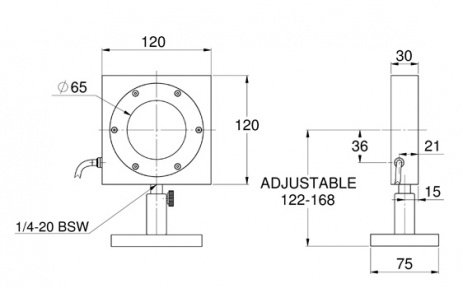

L50(300)A-PF-65 P/N7Z02743 Laser Measurement Sensor Drawing：

L50(300)A-PF-65 Drawing

L50(300)A-PF-65 P/N7Z02743 Laser Measurement Sensor Specification：

Absorber Type	PF type
Aperture	Ø65mm
Spectral Range	0.15-20µm
Power Range	400mW-300W
Energy Range	200mJ-300J
Dimensions	120 L x 120 W x 30 D (mm)
Max Pulse Energy	300J
Max Average Power Density	3kW/cm²
Response Time	3 s
Max Energy Density (for <100ns)	1.5J/cm²
Max Energy Density (for 2ms)	15J/cm²
Max Average Power	300W
