L50(300)A-BB-65 P/N7Z07127 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: L50(300)A-BB-65
Description: The L50(300)A-BB-65 is a general purpose thermal power/energy laser measurement sensor with a 65mm aperture. It can measure from 400mW to 50W continuously and to 300W intermittently. It can measure en
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L50(300)A-BB-65 P/N7Z07127 Laser Measurement Sensor Introduction：

The L50(300)A-BB-65 is a general purpose thermal power/energy laser measurement sensor with a 65mm aperture. It can measure from 400mW to 50W continuously and to 300W intermittently. It can measure energy from 200mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

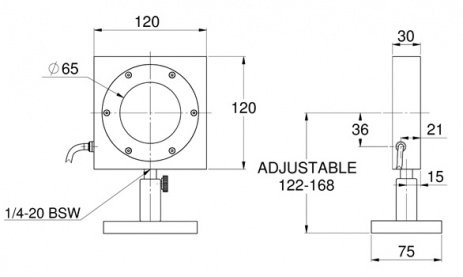

L50(300)A-BB-65 P/N7Z07127 Laser Measurement Sensor Drawing：

L50(300)A-BB-65 Drawing

L50(300)A-BB-65 P/N7Z07127 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø65mm
Spectral Range	0.19-11µm
Power Range	400mW-300W
Energy Range	200mJ-300J
Dimensions	120 L x 120 W x 30 D (mm)
Max Pulse Energy	300J
Max Average Power Density	9.5kW/cm²
Response Time	3 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	300W
