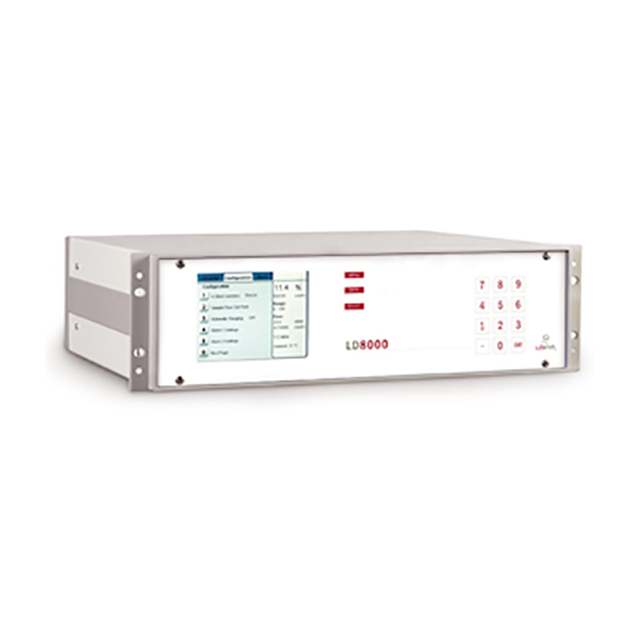

Binary Gas Analyzer - LDetek LD8001-TCD (LD8000-TCD)

Updated:2023-10-26

Views:1202

  • Brand: PST/LDetek
  • Model: LD8001-TCD (LD8000-TCD)
  • Description: The LD8001TCD (LD8000TCD) analyzer offers direct and continuous measurements of a gas component in a binary gas mixture. It is a compact, rack-mountable unit for industrial & laboratory use. It uses a
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Binary Gas Analyzer - LDetek LD8001-TCD (LD8000-TCD) Description:

Datasheet

Thermal Conductivity-Based Gas Monitoring

Features

Unique Thermal Conductivity Detector (TCD)

Bootloader integrated for software update via Ethernet

Large scale measurement

4-20 mA output as standard

Range Identification Relay

Maintenance free

LAN/Web control

Micro-valve for very low dead volume and fast purging time

3U cabinet

The LD8001TCD (LD8000TCD) analyzer offers direct and continuous measurements of a gas component in a binary gas mixture. It is a compact, rack-mountable unit for industrial & laboratory use. It uses a Thermal Conductivity Detector (TCD) enabling measurements in the ppm to % measurements for binary gas mixtures.

Measurements of one component in more complex gas mixtures is also achievable when the background gases have the same ratio to each other or have similar thermal conductivity values.

The larger the difference between the thermal conductivity of the gas of interest and the background gas(es), the lower the limit of detection. For this reason, each application will different measurement ranges.

Specifications

DETECTOR TYPE
  • Thermal Conductivity Detector (TCD)
RANGE
  • Ppm to % (application dependant)
ACCURACY
  • Better than ± 1% of range used
STANDARD FEATURES
  • Manual or autoranging (user selectable)
  • Microprocessor controlled
  • 5.6'' TFT intelligent LCD module with Touch Screen
  • Self diagnosis system with auto-resolve alarm
  • LAN/Web control
  • 4-20 mA isolated output
  • Alarm Historic
  • Digital ouputs for remote monitoring: (all dry relay contacts)
    • System status (1 output)
    • Range in use (3 output)
    • Calibration in use (1 output)
OPTIONS
  • Internal sampling system for zero.
  • Serial port: RS-232 / 422 / 485 / Modbus
  • 2 alarm outputs (user programmable set point)
GAS CONNECTIONS
  • Sample: 1/8'' face seal fittings
  • Vent: 1/8'' compression fitting
SAMPLE FLOW REQUIREMENTS
  • 0 to 300 sccm
OPERATING PRESSURE
  • 3 to 30 PSIG
OPERATING TEMPERATURE
  • 10°C to 45°C
SUPPLY
  • 115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz
POWER CONSUMPTION
  • Maximum 40 watts
DRIFT
  • Dependent of calibration
WEIGHT
  • 30lbs (14 kg)

Suitable Applications

Gas Manufacturing Facilities: monitoring Pressure Swing Adsorption (PSA) Systems

Gas management system

Gas blending equipment

Air Liquification Plants: monitoring purity of Ar, O2, H2, N2, He, CO2, or Ne

Welding gas control

Steel Mills: CO2 in off-gas from gas generators

Petroleum Refineries: H2 purity in C1 - C6 hydrocarbons

Speciality gas laboratories

Heat Treating: H2 in N2 and other annealing gases

Process control

Power Generation Plants: H2 cooling gas in turbine generator housings; CO2 in turbine generator housing; checking H2 purity

Ammonia Plants

Chemical plants

Refrigeration Facilities
