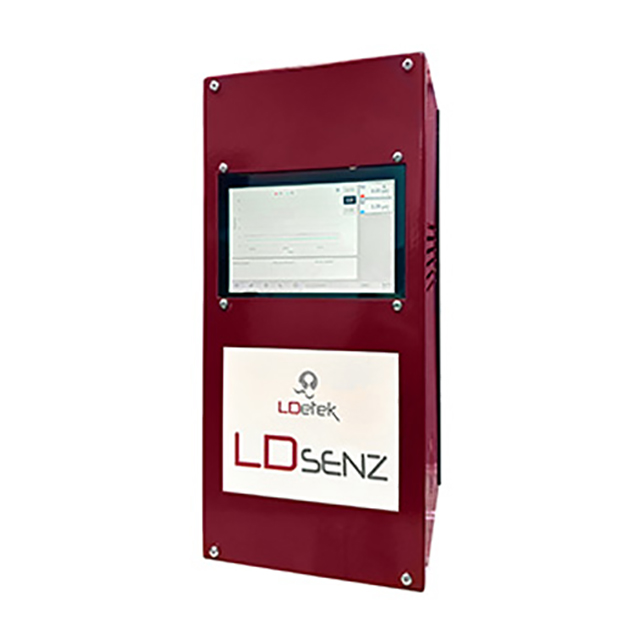

Trace Impurities Analyzer for Nitrogen And Oxygen - LDetek LDSENZ

Updated:2023-10-26

Brand: PST/LDetek
Model: LDSENZ
Product description: The LDSENZ is our most compact nitrogen and/or oxygen analyser using our well proven plasma emission detector (PED) and the Senz-Tx (electrochemical/ zirconia) series from NTRON. Combining both trace
Data download

Feedback
WeChat

QQ

Online Service

product details

Trace Impurities Analyzer for Nitrogen And Oxygen - LDetek LDSENZ Description：

Datasheet

Most Compact Trace Nitrogen And Oxygen Analyzer

Features

Senz-Tx - Zirconia (ZR)

Senz-Tx - Electrochemical (EC)

PED - Plasma emission detector

Accuracy: < +/- 1% of scale

Response Time(T90): < 10sec

Operating Temperature Range: 5-45 Celsius

Modbus, Web interface(admin)

The LDSENZ is our most compact nitrogen and/or oxygen analyser using our well proven plasma emission detector (PED) and the Senz-Tx (electrochemical/ zirconia) series from NTRON. Combining both trace nitrogen and oxygen in the same instrument makes it compact and ideal for any of your applications.

Specifications

SENSOR MODEL	Senz-Tx	Senz-Tx	PED
MEASUREMENT TECHNOLOGY	Zirconia (ZR)	Electrochemical (EC)	Plasma emission detector
SENSOR MANUFACTURER	NTRON	NTRON	LDetek
IMPURITY DETECTED	O2	O2	N2
SAMPLE GAS	multiple gases	multiple gases	Argon/Helium
*RANGES (DEFAULT)**	0-10ppm (resolution 0.5ppm) 0-100ppm (resolution 1ppm) 0-1000ppm (resolution 1ppm) up to 96% available	0-10ppm (resolution 0.1ppm) 0-100ppm (resolution 1ppm) 0-1000ppm (resolution 1ppm) up to 25% available	0-10ppm (resolution 100ppb) 0-100ppm (resolution 1ppm) 0-1000ppm (resolution 1ppm) up to 5000ppm available
LIMIT OF DETECTION (LDL)	1ppm	0.5ppm	10ppb
ACCURACY	<+/- 1% of scale	<+/- 1% of scale	<+/- 1% of scale
RESPONSE TIME (T90)	<10 sec	<10 sec	<10 sec
SENSOR LIFE EXPECTATION	3-5 years	1 year	>10 years
OPERATING TEMPERATURE RANGE	5-45 Celsius
SAMPLE GAS TEMPERATURE	0-100 Celsius
SAMPLE FLOW REQUIREMENT	100ml/min per sensor installed
OPERATING SAMPLE PRESSURE RANGE	3-30psig (for lower sample pressure requirement, an additional high purity pump is used)
OUTLET PRESSURE	Atmospheric
INLET FITTINGS	1/8'' or 1/4'' Swagelok compression or VCR
OUTLET FITTINGS	1/8'' or 1/4'' Swagelok compression or VCR
STANDARD FEATURES	Modbus, Web interface(admin)
OPTIONS	4-20mA outputs, Dry contact outputs
SUPPLY	24VDC
