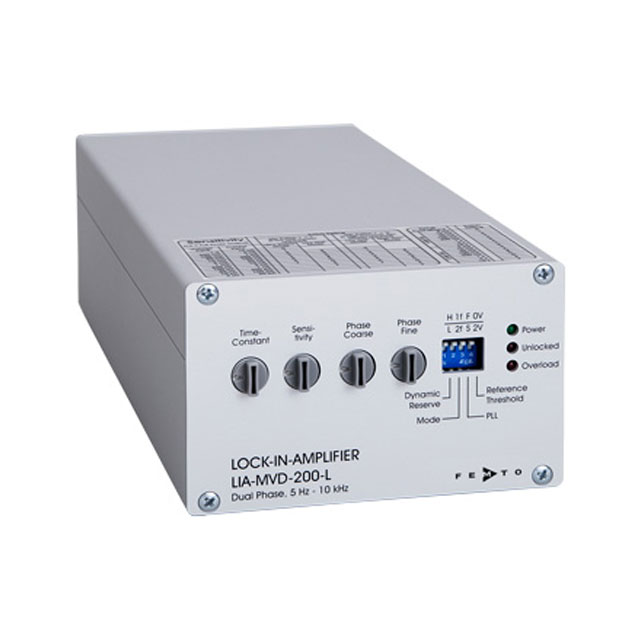

LIA-MV(D)-200 LOCK-IN AMPLIFIERS SERIES

Updated:2022-12-08

Brand name:FEMTO
Model number: LIA-MV(D)-200
Description: The high grid of the usual benchtop lock-in amplifiers means that they are not as common in noise limiting experiments as might be hoped. Therefore, FEMTO designed a lock-in amplifier to extend the ra
Data download

Feedback
WeChat

QQ

Online Service

Product Details

LIA-MV(D)-200 LOCK-IN AMPLIFIERS SERIES-FEATURES

Single and dual phase
Rugged aluminum housing
BNC connectors for input and output signals
Working frequency 5 Hz up to 120 kHz
Phase shifter 0° ... +360°
Current and voltage input
Optional reference oscillator module SOM-1 available

LOCK-IN-AMPLIFIER AS A STANDARD

The high prices for usual desktop lock-in amplifiers mean that they are not as common in noise limited experiments as would be desirable. For this reason FEMTO designed a complete, easy-to-use and high performance lock-in amplifier expanding the reach of lock-in amplifiers into cost-sensitive applications.

PROGRAMMING THE LOCK-IN MANUALLY OR BY COMPUTER

The Series LIA-MV(D)-200 Lock-In Amplifiers are designed as stand-alone units which can be programmed both manually by front-panel switches and remotely by a digital interface. By using a PC with a standard digital I/O card all main settings for sensitivity, time constant and phase shift can easily be controlled. Therefore, the Series LIA-MV(D)-200 Lock-In Amplifiers are the ideal tool for integration into complex or automated test systems as well as for use as standard lab unit in cost-sensitive applications.

应用

Spectroscopy
Luminescence, fluorescence, phosphorescence measurements
Light scattering measurements
Laser stabilization
Opto-electronical quality control
Integration into industrial and scientific measurement-systems
Alternative to expensive desktop lock-in amplifiers for general lab use

Model	LIA-MV-200-L Single Phase	LIA-MV-200-H Single Phase	LIA-MVD-200-L Dual Phase	LIA-MVD-200-H Dual Phase
Working Frequency	5 Hz - 10 kHz	50 Hz - 120 kHz	5 Hz - 10 kHz	50 Hz - 120 kHz
Time Constants	3 ms - 10 s 6 or 12 dB/oct.	300 µs - 1 s 6 or 12 dB/oct.	3 ms - 10 s 6 or 12 dB/oct.	300 µs - 1 s 6 or 12 dB/oct.
Adjustable Signal Filter[6 dB/oct.]	Highpass 0.2 Hz - 1 kHz Lowpass 100 Hz - 1 MHz	Highpass 2 Hz - 10 kHz Lowpass 100 Hz - 1 MHz	Highpass 0.2 Hz - 1 kHz Lowpass 100 Hz - 1 MHz	Highpass 2 Hz - 10 kHz Lowpass 100 Hz - 1 MHz
Datasheet	212 KB	212 KB	222 KB	222 KB
Outputs (BNC)	X = in phase, ±10 V full scale, short-circuit protected, Signal monitor output		X = in phase, Y = quadrature, R = magnitude, ±10 V full scale, short-circuit protected, Signal monitor output
Sensitivity (Full Scale)	Voltage: 3 µV - 1 V in 1-3-10 steps Current: 30 pA - 10 µA in 1-3-10 steps
Voltage Input (BNC)	Instrumentation amplifier, noise 12 nV/√Hz
Current Input (BNC)	Transimpedance amplifier, gain 100 kV/A, noise 0.4 pA/√Hz
Reference Input (BNC)	±100 mV to ±5 V, switchable to TTL
Phase	Adjustable 0° - 360°; resolution: 8-bit @ f ≤ 60 kHz, 7-bit @ f > 60 kHz Temperature drift < 0.01°/K
Max. Dyn. Reserve	80 dB
Digital Control	16 TTL/CMOS inputs: 8-bit phase, 4-bit time constant, 4-bit sensitivity
Power Supply	±15 V, +120 mA / -60 mA
Dimensions	223 x 105 x 65 mm (L x W x H), weight 1,000 g (2.2 lbs)

The optional Reference Oscillator SOM-1 can be connected by an extension connector inside the module. Power supply via 3-pin Lemo® socket. A mating connector is provided with the device. Optional power supply PS-15 available. For further information please view the datasheet.

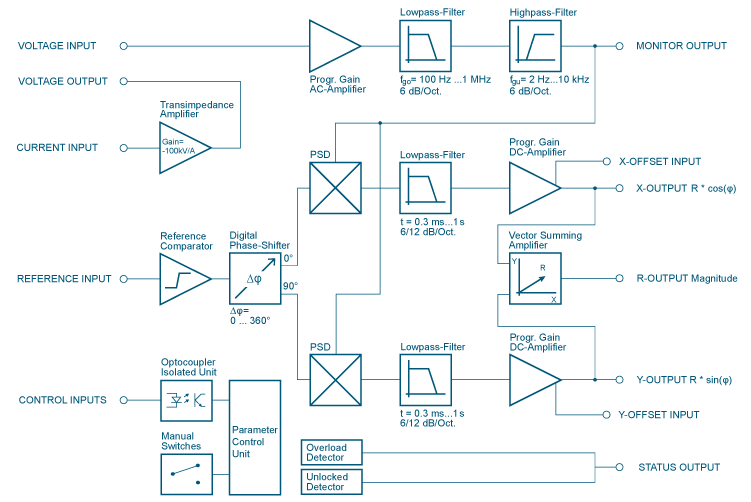

Block Diagram LIA-MVD-200-H
