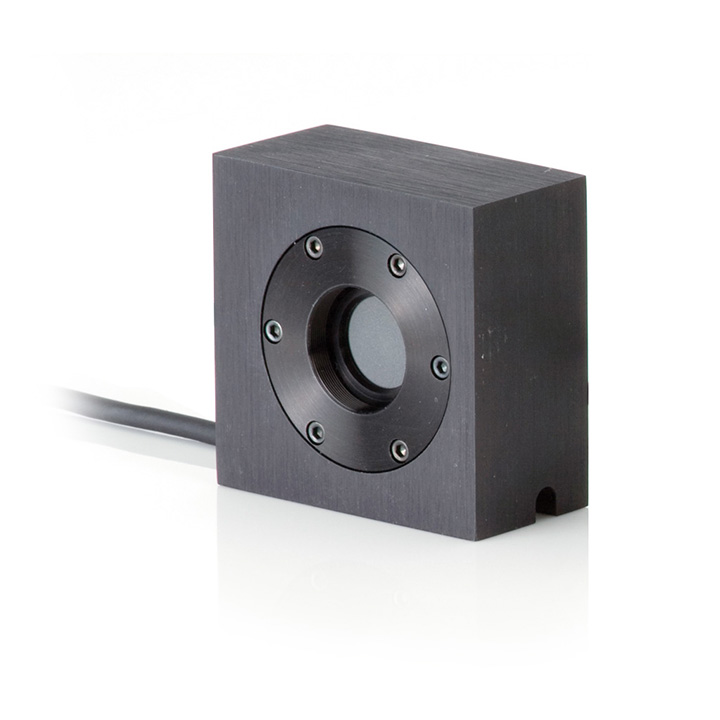

Coherent LM-150 LS Laser Power Sensor

Updated:2024-10-31

Views:35

  • Brand: Coherent
  • Model: LM-150 LS
  • Description: This compact LM-150 LS sensor is designed for intermittent use at higher powers up to 150W (for two minutes) without water or fan cooling. It is terminated in a SmartSensor DB25 cable and is directly
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent LM-150 LS Laser Power Sensor Description:

Datasheet

This compact LM-150 LS sensor is designed for intermittent use at higher powers up to 150W (for two minutes) without water or fan cooling. It is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

A USB-direct (PN 1275678) model is available.

This LM-150 LS version has a rectangular form factor, whereas the LM-150 FS (PN 1098394) is round.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Compact convectively cooled thermopile for measuring pulsed & CW lasers intermittently up to 150W with beam position measurement:

2 minutes at 150W

5 minutes at 100W

20 minutes at 40W

Key Features:

100 mW to 150W range (intermittent)

19 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

Air cooled

0.25 to 10.6 µm spectral range

Fiber adapters available

ISO 17025 accredited

Specifications

Cable Type
LM DB-25
Cooling Type
Air
Power Range
100 mW to 150W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
3
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.25 to 10.6
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
3
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±5
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
1.8
