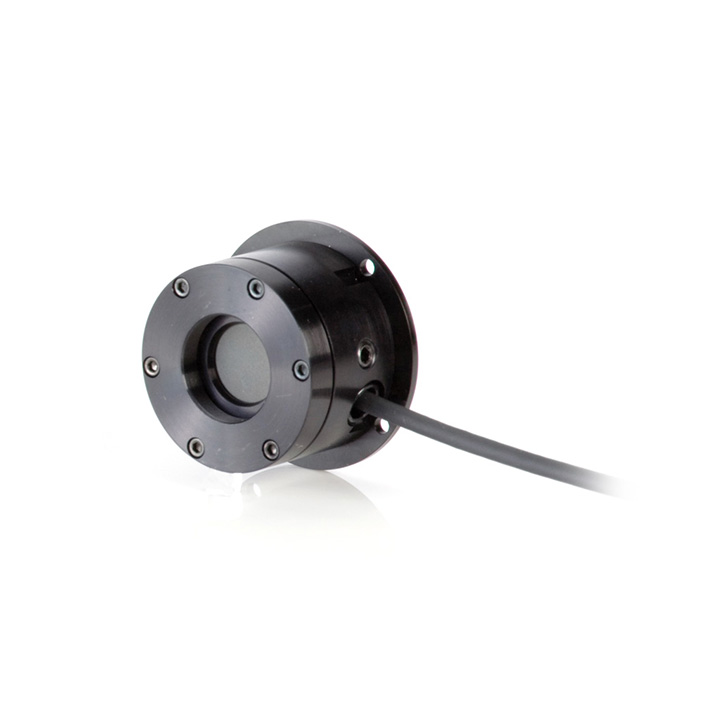

Coherent LM-20 OEM Laser Power Sensor

Updated:2024-10-31

Views:109

  • Brand: Coherent
  • Model: LM-20
  • Description: This LM-20 sensor is designed for embedded use inside a laser system and must be mounted on a heat sink to dissipate the heat. It is terminated in a SmartSensor DB25 cable and is directly compatible w
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent LM-20 OEM Laser Power Sensor Description:

Datasheet

This LM-20 sensor is designed for embedded use inside a laser system and must be mounted on a heat sink to dissipate the heat. It is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

A USB-direct (PN 1174270) model is available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Conductively cooled OEM thermopile for measuring pulsed & CW lasers up to 20W with beam position measurement.

Key Features:

100 mW to 20W range

19 mm diameter active area

Beam position measurement

Compact OEM sensor

Spectrally flat broadband coating

0.25 to 10.6 µm spectral range

Conductively cooled

Fiber adapters available

ISO 17025 accredited

Specifications

Cable Type
LM DB-25
Cooling Type
Conductive
Power Range
100 mW to 20W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
3
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.25 to 10.6
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
3
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
1.8
