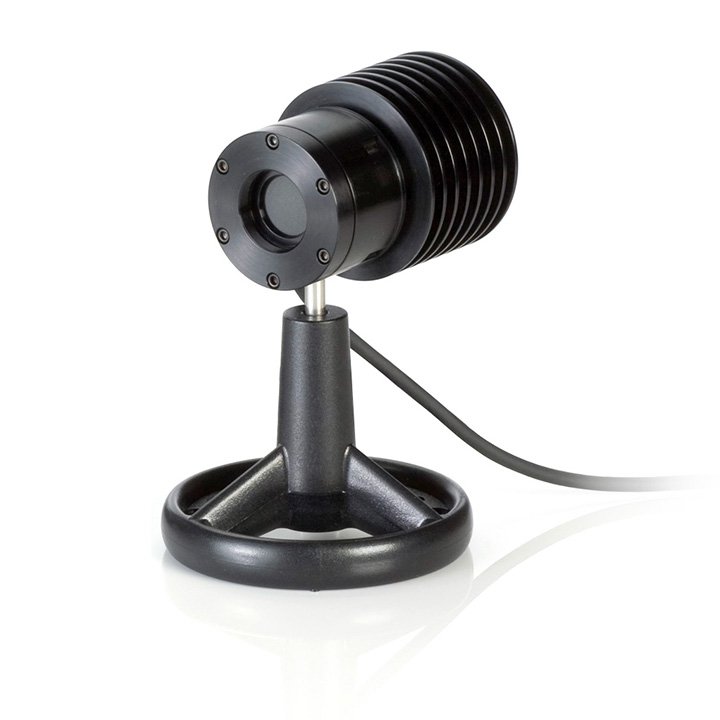

Coherent LM-45 Laser Power Sensor

Updated:2024-11-01

Views:103

  • Brand: Coherent
  • Model: LM-45
  • Description: This LM-45 sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to us
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent LM-45 Laser Power Sensor Description:

Datasheet User's Manual

This LM-45 sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

USB-direct (PN 1168342) and RS232-direct (PN 1211474) models are available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Convectively cooled thermopile for measuring pulsed & CW lasers up to 25W with beam position measurement.

Key Features:

100 mW to 25W range

19 mm diameter active area

Beam position measurement

Capable of 45W intermittently for up to 5 minutes

Spectrally flat broadband coating

0.25 to 10.6 µm spectral range

Convective air-cooled

Fiber adapters available

ISO 17025 accredited

Specifications

Cable Type
LM DB-25
Cooling Type
Air
Power Range
100 mW to 25W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
2
Maximum Intermittent Power (watts)(<5 minutes)
45
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.25 to 10.6
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
3
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
1.8
