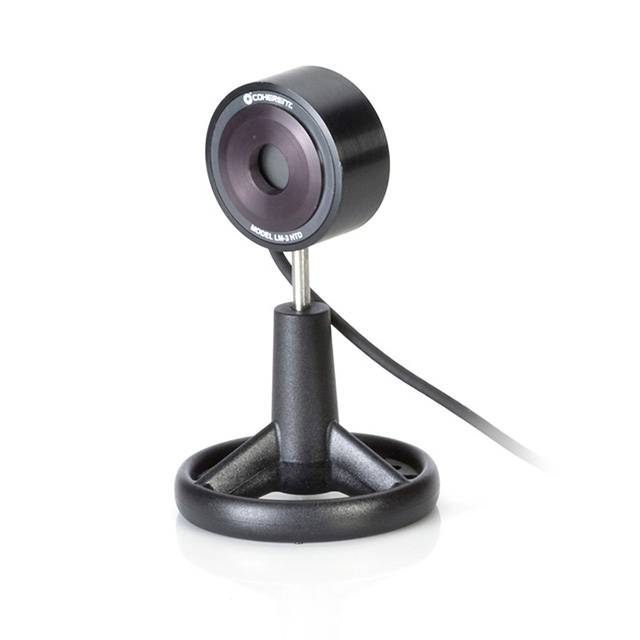

Coherent LM-3 Laser Power Sensor

Updated:2024-11-01

Views:117

  • Brand: Coherent
  • Model: LM-3
  • Description: This LM-3 sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent LM-3 Laser Power Sensor Description:

Datasheet

This LM-3 sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

USB-direct (PN 1168339) and RS232-direct (PN 1363752) models are available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available.

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Convectively cooled thermopile for measuring pulsed & CW lasers up to 3W with beam position measurement.

Key Features:

10 mW to 3W range

19 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

0.25 to 10.6 µm spectral range

Convective air-cooled

Fiber adapters available

ISO 17025 accredited

Specifications

Cable Type
LM DB-25
Cooling Type
Air
Power Range
10 mW to 3W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
0.4
Maximum Intermittent Power (watts)(<5 minutes)
10
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.25 to 10.6
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
1.8
