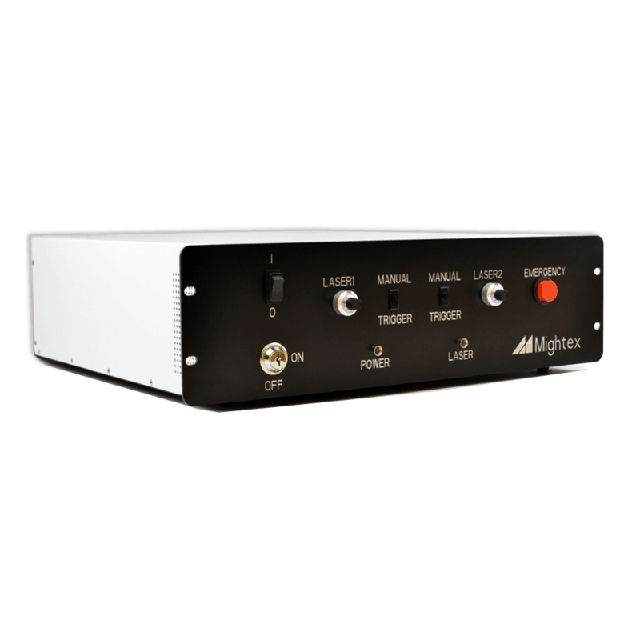

LSR-040-0405 Fiber-Coupled Laser Sources

Updated:2024-03-28

Brand: Mightex
Model: LSR-040-0405
Description: Mightex fiber-coupled laser light sources are designed to produce high power and high intensity output of illumination through an optical fiber patchcord.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

LSR-040-0405 Fiber-Coupled Laser Sources Description：

Mightex fiber-coupled laser light sources are designed to produce high power and high intensity output of illumination through an optical fiber patchcord.

Safety Features:

Power Switch

Key Switch

Emergency Switch

Interlock

Intensity Control:

Manual mode: 10-turn diales for each wavelength

Analog mode: 0-5V for each wavelength

Maximum modulation frequency (Analog mode): 100kHz

Laser Output:

Single fixed fiber, 2.5m in length

Communication:

USB port for firmware and configuration upgrade

Electrical:

100-240V 50-60Hz 0.8A

Mechanical:

19″ 3U 483 x 436 x 132mm

22 lbs

Specifications:

	Output Power (mW)
Part Number	@ 405nm	@ 463nm	@ 465nm	@ 520nm	@ 635nm	@ 637nm
LSR-040-0405	500	-	-	-	-	-
LSR-040-0463	-	2200	-	-	-	-
LSR-040-0465	-	-	3200	-	-
LSR-040-0520	-	-	-	500	-	-
LSR-040-0635	-	-	-	-	850	-
LSR-040-0637	-	-	-	-	-	4000
LSR-040-0405-0463	450	2000	-	-	-	-
LSR-040-0405-0635	450	-	-	-	750	-
LSR-040-0463-0635	-	2000	-	-	750	-
