MI-210: Research-Grade Standard Field of View Infrared Radiometer with Handheld Meter

Updated:2023-05-15

Brand: Apogee
Model: MI-210
Description: The MI-210 has a hand-held meter, attached via cable, that displays and stores sensor measurements. The sensor has a 22° half-angle field of view and a response time of 0.6 seconds. Typical applicatio
Data download

Feedback
WeChat

QQ

Online Service

Product Details

MI-210: Research-Grade Standard Field of View Infrared Radiometer with Handheld Meter Functional Characteristic：

User's Manual Technical Drawing

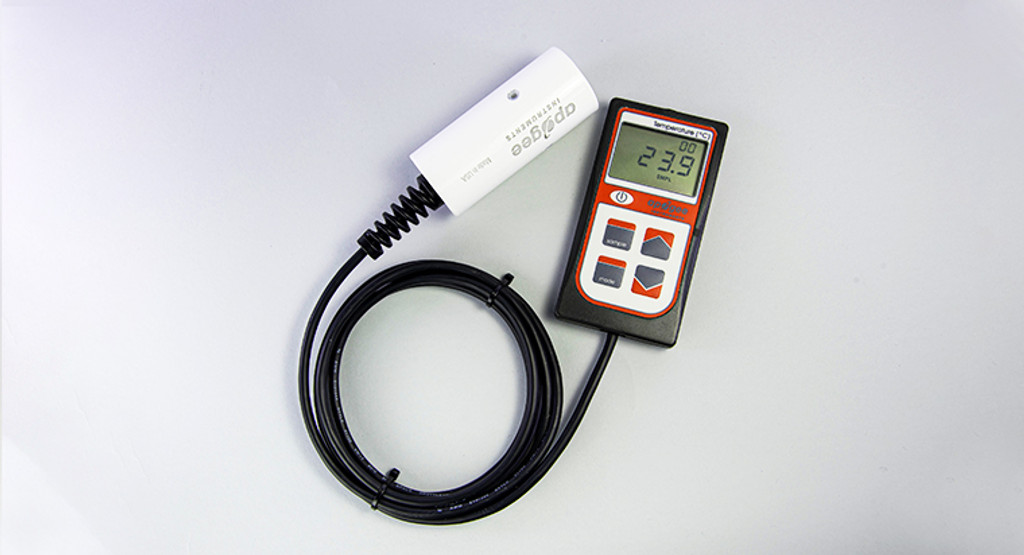

The MI-210 has a hand-held meter, attached via cable, that displays and stores sensor measurements. The sensor has a 22° half-angle field of view and a response time of 0.6 seconds. Typical applications include plant canopy temperature measurement for use in plant water status estimation, road surface temperature measurement of determination of icing conditions, and terrestrial surface (soil, vegetation, water, snow) temperature measurement in energy balance studies.

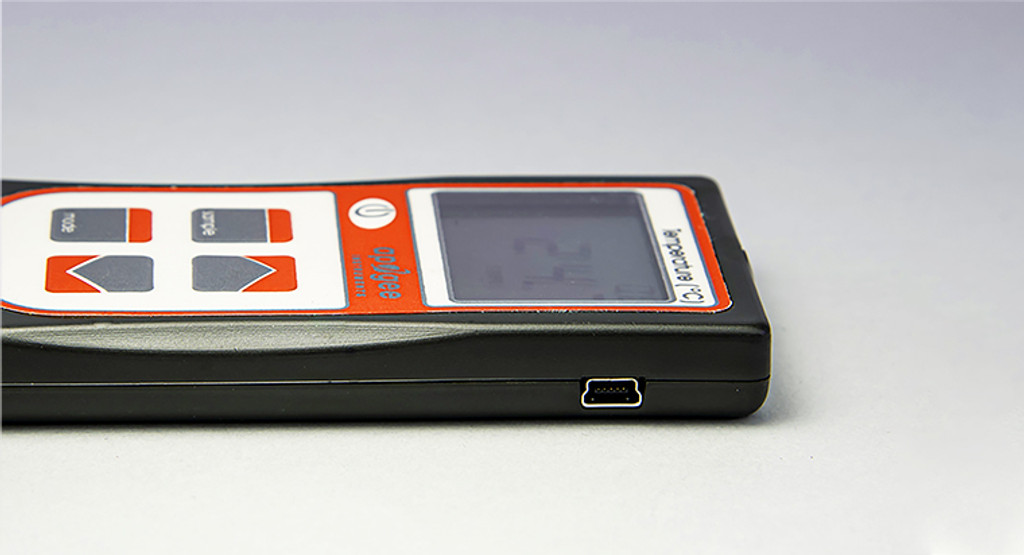

The meter has a sample and log mode, and will record an average daily value. Sample mode will record up to 99 manual measurements. Log mode will power the meter on/off to make a measurement every 30 seconds. Every 30 minutes the meter will average the sixty 30 second measurements and record the averaged value to memory. The meter can store up to 99 averages, once full it will start to overwrite the oldest measurement with new ones. An average daily value will be recorded from the 48 averaged measurements (making a 24 hr period). Sample and log measurements can be reviewed on the LCD display or by downloading the data to a computer, however, the average daily value can only be viewed by downloading the data to a computer. Downloading data to a computer requires the AC-100 communication cable (a standard USB cable will not work) and ApogeeAMS software. Comes with a free protective carrying case.

MI-210: Research-Grade Standard Field of View Infrared Radiometer with Handheld Meter Drawing：

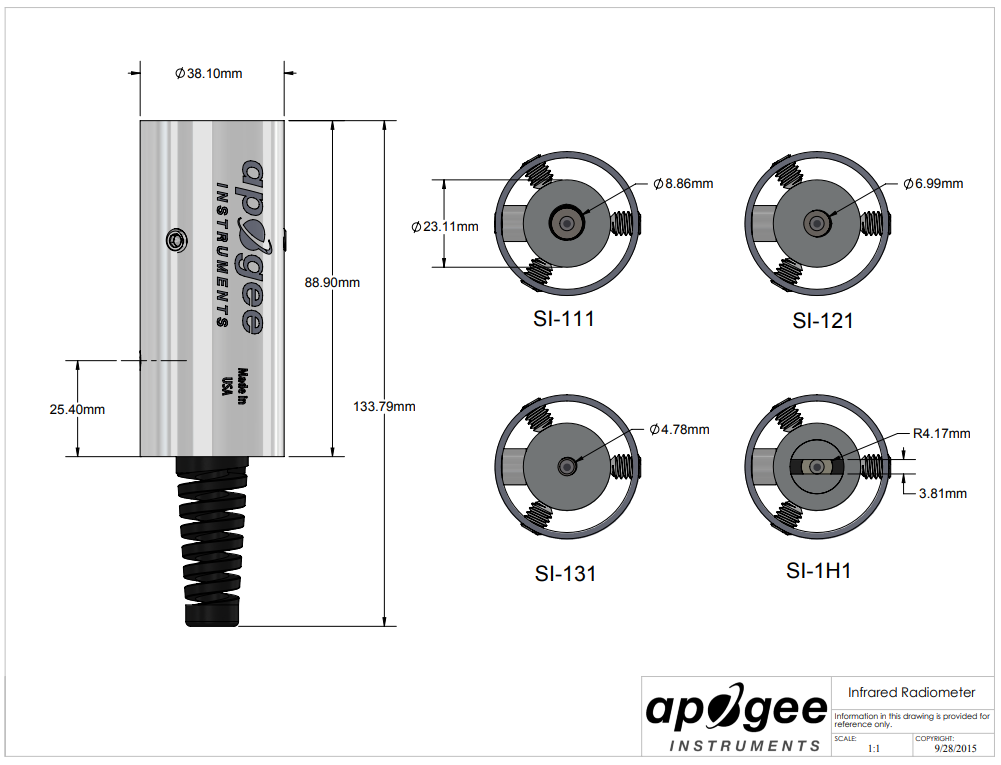

MI-210 Drawing

MI-210: Research-Grade Standard Field of View Infrared Radiometer with Handheld Meter Specification：

Calibration Uncertainty (-30 to 65 C)	± 0.3 C, when target and detector temperature are within 20 C
Calibration Uncertainty (-40 to 80 C)	± 0.5 C, when target and detector temperature are different by more than 20 C
Measurement Repeatability	± 0.1 C
Stability (Long-term Drift)	Less than 2 % change in slope per year when germanium filter is maintained in a clean condition
Response Time	0.6 s, time for detector signal to reach 95 % following a step change; meter firmware averaging results in a 3 s response for digital output on meter screen
Field of View	22 ˚ half-angle
Spectral Range	8 to 14 µm atmospheric window
Operating Environment	0 to 50 C, less than 90 % non-condensing relative humidity up to 30 C, less than 70 % non-condensing relative humidity from 30 to 50 C
Meter Dimensions	126 mm length, 70 mm width, 24 mm height
Sensor Dimensions	23 mm diameter, 60 mm length
Mass	270 g (with radiation shield)
Cable	2 m of four conductor, shielded, twisted-pair wire with santoprene rubber jacket (high water resistance, high UV stability, flexibility in cold conditions), additional cable available
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
