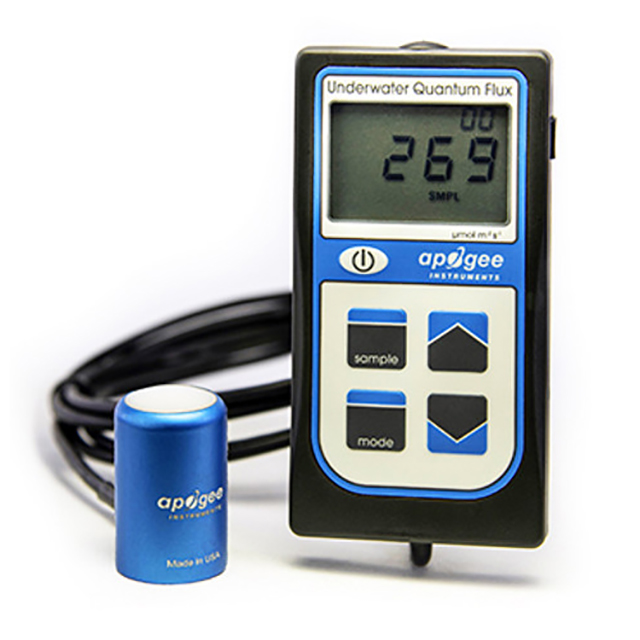

MQ-510 Full-Spectrum Underwater Quantum Meter

Updated:2022-12-22

Views:1298

  • Brand:APOGEE
  • Model: MQ-510
  • Description: MQ-510 full spectrum underwater quantum meter is a tool for accurate measurement of photosynthetic effective radiation (PAR). Immersion effect correction factor is used for real-time and accurate meas
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Overview of MQ-510 Full-Spectrum Underwater Quantum Meter:

User's Manual

MQ-510 full spectrum underwater quantum meter is a tool for accurately measuring photosynthetic effective radiation (PAR).





Measuring PAR is critical: accurate PAR meters are critical to measuring the light intensity used for the precise growth of plants and other photosynthetic organisms in greenhouses, growth chambers, farms, gardens, aquariums and other agricultural systems. This underwater quantum meter is specially designed to measure underwater light intensity of biological, chemical and physical processes in natural waters and aquariums.

Underwater accuracy: When the quantum sensor is calibrated for air, the underwater PAR measurement reading may be low. MQ-510 applies the immersion effect correction factor to conduct real-time and accurate measurement under water. Accurately measure and combine the intensity of all photons between 400 and 700 nm, give a single PAR reading in micromoles per square meter per second with an uncertainty of 5% underwater. Moreover, this instrument has stable and accurate calibration, and the annual precision drift rate is less than 2%.

Mass quantum meter: MQ-510 has a laboratory level PPFD (photosynthetic photon flux density) or "quantum" optical detector that has been accurately calibrated and can measure the light intensity of specific color wavelengths emitted by LED, HPS, MH, sunlight, plants and other light sources used by corals for photosynthesis.

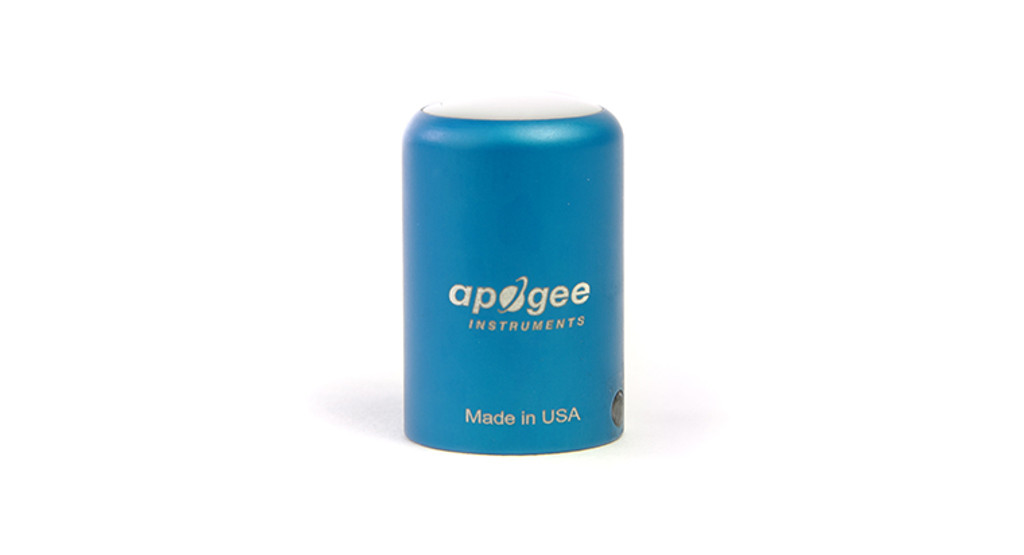

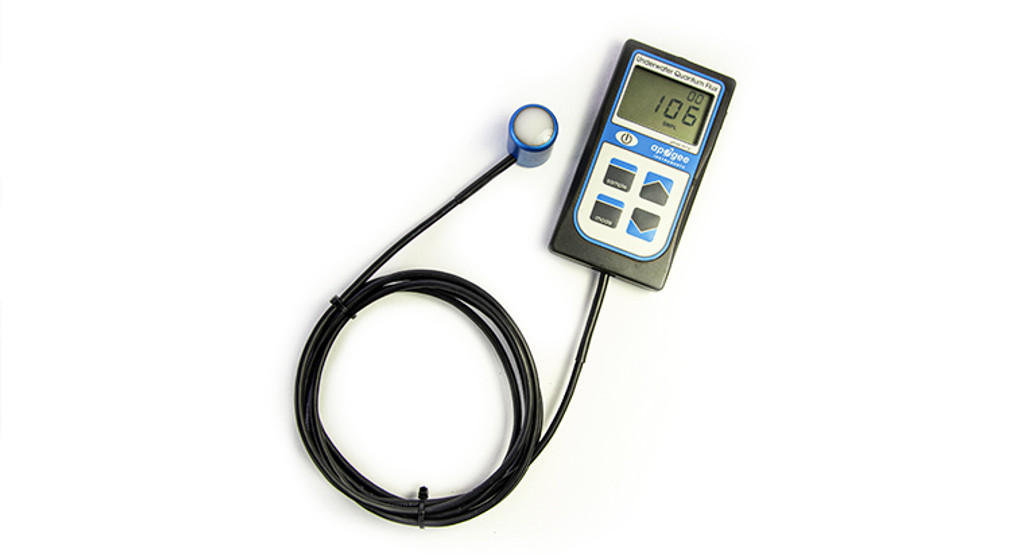

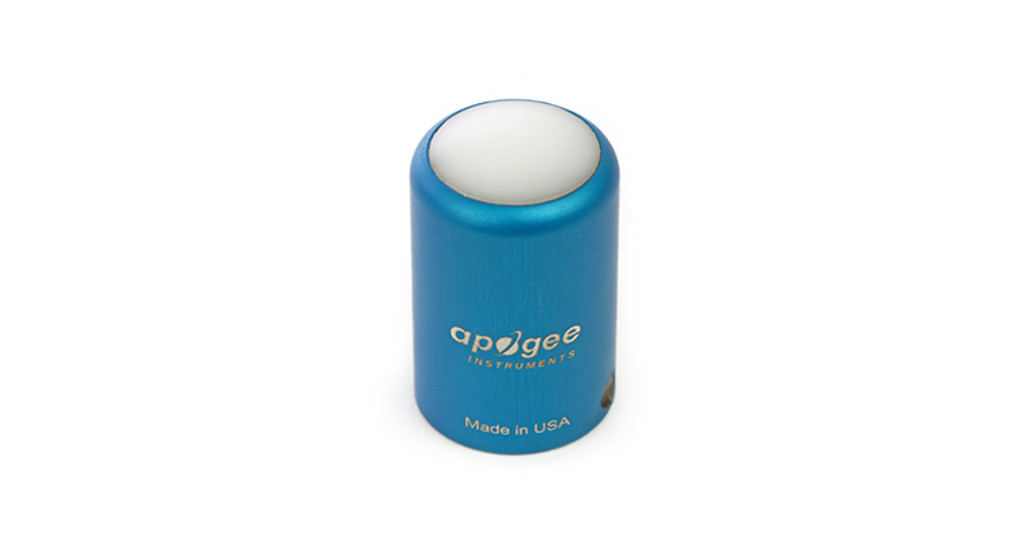

Robust and easy to use: Quantum sensor heads are made of machined aluminum and encapsulated with epoxy resin, which can be used for many years in harsh environments, including underwater. The hand-held instrument is connected by cable and can display real-time readings, record samples, and record average intensity and daylight integration (DLI) measurements. Unlike the sensor head, the hand-held instrument is not waterproof.

Three measurement modes: the instrument has point measurement, sampling and logging modes, and will record the comprehensive daily total in moles per square meter per second. The sampling mode will record up to 99 manual measurements, and the logging mode will turn the instrument on and off, making measurements every 30 seconds. Every 30 minutes, the instrument will take an average of 60 30 second measurements and record the average value in the memory, up to 99 average values. Once filled, it will overwrite the old measurement with the new one. The daily light integration will be recorded from the average of 48 measurements to obtain a daily reading.

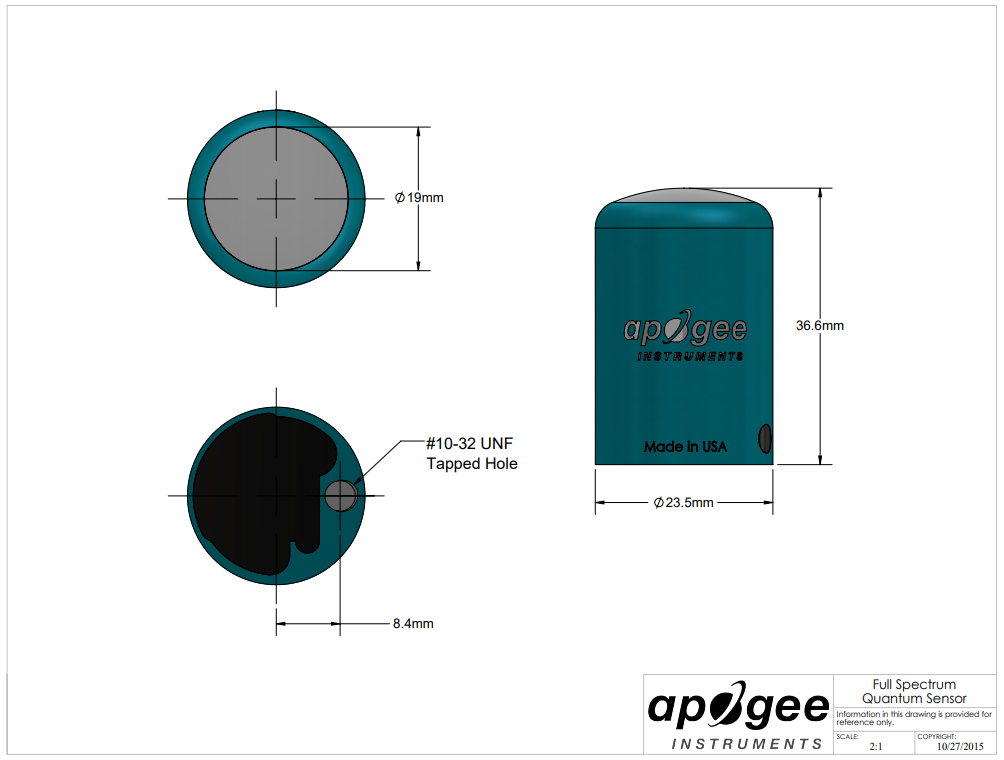

Drawing of MQ-510 quantum meter:


Specification of MQ-510 quantum meter:

Calibration Uncertainty ± 5 %
Measurement Range 0 to 4000 µmol mˉ² sˉ¹
Measurement Repeatability Less than 0.05 %
Long-term Drift (Non-stability) Less than 2 % per year
Non-linearity Less than 1 % (up to 4000 µmol mˉ² sˉ¹)
Response Time Less than 1 ms
Field of View 180˚
Spectral Range 389 to 692 nm ± 5 nm ( wavelengths where response is greater than 50 %)
Spectral Selectivity Less than 10 % from 412 to 682 nm ± 5 nm
Directional (Cosine) Error Less than ± 5 % at 75˚ zenith angle and 10 % from 412 to 682 nm ± 5 nm
Azimuth Error Less than 0.5 %
Tilt Error Less than 0.5 %
Temperature Response -0.11 ± 0.04 % ℃ˉ¹
Uncertainty in Daily Totals Less than 5 %
Detector Blue-enhanced silicon photodiode
Housing Anodized aluminum body with acrylic diffuser
IP Rating Sensor head is IP68. Handheld meter portion is not waterproof
Operating Environment 0 to 50 ℃, less than 90 % non-condesing relative humidity up to 30 ℃, less than 70 % non-condensing relative humidity from 30 to 50 ℃; separate sensors can be submerged in water up to depths of 30 m
Meter Dimensions 126 mm length, 70 mm width, 24 mm height
Sensor Dimensions 24 mm diameter, 37 mm height
Mass 180 g
Cable 2 m of two conductor, shielded, twisted-pair wire; additional cable available; TPR jacket
Warranty 4 years against defects in materials and workmanship
Manufactured Made in the USA
