Uniblitz NS35B 35mm Optical Shutter

Updated:2024-10-10

Brand: Uniblitz
Model: NS35B
Product description: The Uniblitz NS35B is a 35mm-aperture bi-stable optical shutter utilizing our patented N-CAS® technology. The NS35B’s simple design provides maximum clearance around the aperture, and a machined flat
Data download

Feedback
WeChat

QQ

Online Service

product details

Uniblitz NS35B 35mm Optical Shutter Description：

Datasheet

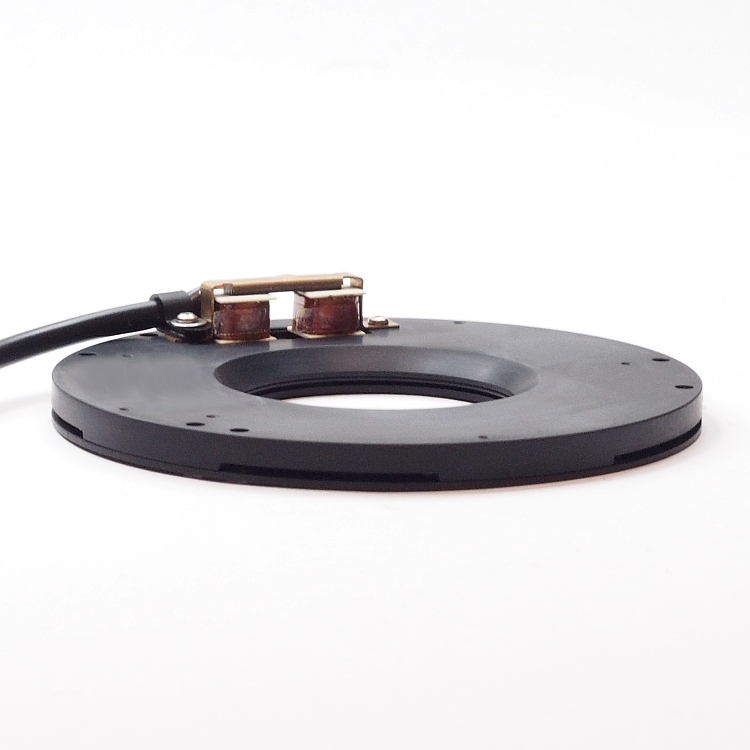

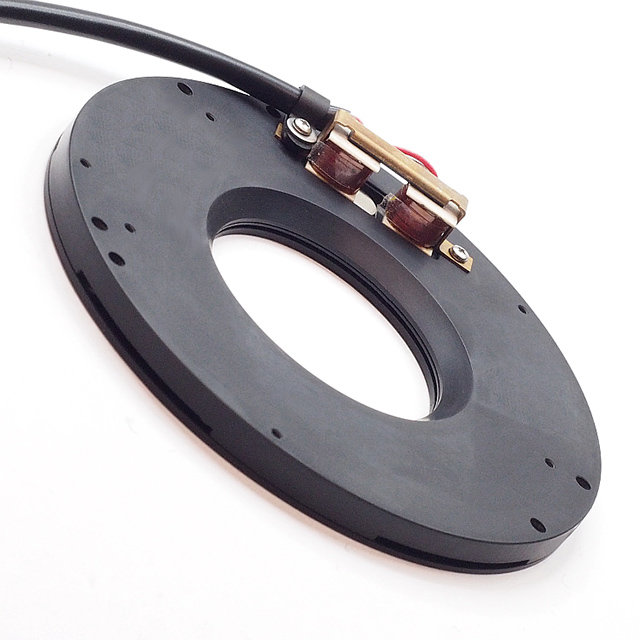

The Uniblitz NS35B is a 35mm-aperture bi-stable optical shutter utilizing our patented N-CAS® technology. The NS35B’s simple design provides maximum clearance around the aperture, and a machined flat surface makes for its easy integration into virtually any system. The NS35B has an overall diameter of 3.18 inches, and an electronic synchronization is available.

Key Features

35mm aperture

Bi-stable operation

Only two unique moving parts

Slim, low-profile form-factor

RoHS Compliant

Transfer time on opening: 12.0 milliseconds

Total opening time: 18.5 milliseconds

Can be configured for the VED24, ED12DSS, or VDM1000 shutter drivers.
