OE-300 200 MHZ VARIABLE GAIN PHOTORECEIVER SERIES

Updated:2022-12-09

Views:1682

  • Brand: FEMTO
  • Model: OE-300
  • Description: The OE-300 optical receiver consists of a high-quality photodiode and a high-end variable gain transimpedance amplifier. The low noise performance (NEP) is excellent, which sets a benchmark for broadb
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

OE-300 200 MHZ VARIABLE GAIN PHOTORECEIVER SERIES

  1. Adjustable transimpedance gain from 102 to 108 V/A

  2. Wide bandwidth up to 200 MHz

  3. Various Si and InGaAs models cover the 320 to 1700 nm wavelength range

  4. High dynamic input range up to 10 mW optical power

  5. Large optical detector size up to 3 mm dia.

  6. Low noise, NEP down to 47 fW/√Hz

  7. Switchable low pass filters for minimizing wideband noise

  8. Fiber optic and free space input

  9. 1.035"-40 threaded free space input compatible with many optical standard accessories

  10. Full manual and remote control capability

STATE-OF-THE-ART PHOTODETECTION IN THE MHZ-RANGE

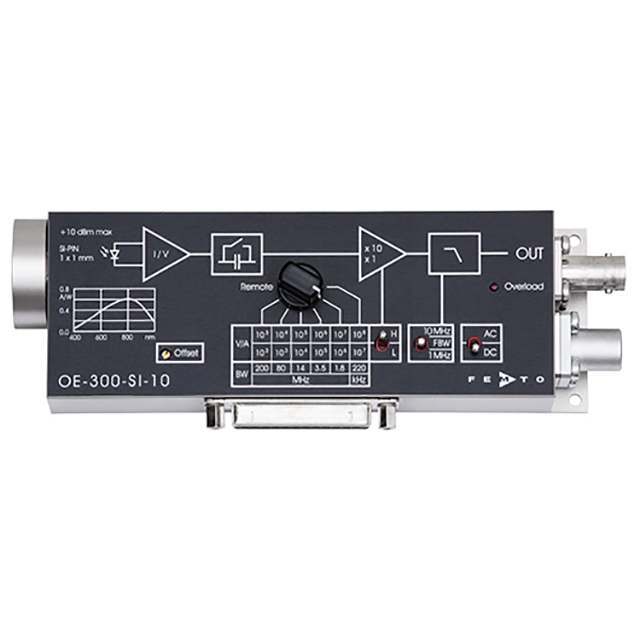

The OE-300 photoreceiver consists of a premium quality photodiode followed by a high-end, variable gain transimpedance amplifier. The low noise performance (NEP) is outstanding and sets a benchmark for wideband photoreceivers particularly in the high and mid-range gain settings. The relatively large sized detectors make optical alignment easy and also ensure a very high coupling efficiency when using the Si models together with the optionally available fiber optic adapters PRA-FC/SMA.

The switchable gain from 102 to 108 V/A (decade increments) allows precise and reliable measurements within a very wide dynamic range from nanowatts up to 10 milliwatts optical power.

Many additional features like switchable low-pass filters, offset adjustment, switchable AC/DC coupling and the capability of manual and opto-isolated remote control by a PC make the OE-300 the most versatile wideband photoreceiver in its class.

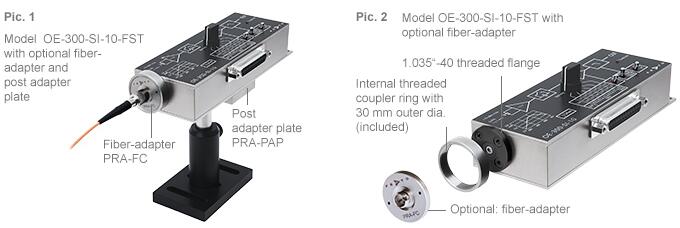

COMPATIBILITY WITH OPTICAL BENCH/BREADBOARD/CAGE SYSTEMS AND FIBER OPTICS

The Si-models are factory equipped with an optical free space input. There is the choice between a 1.035"-40 threaded flange including a coupler ring with 30 mm outer diameter and a 25 mm unthreaded flange. Both types offer a broad compatibility with optical standard accessories like tubes, lenses, cage systems, optical adapters etc. from various manufacturers. The threaded free space input e.g. can be easily converted to an optical fiber input by screwing a 1.035"-40 externally threaded fiber-adapter to it.

For the InGaAs models there is the choice between a fixed fiber input (FC) model allowing highly accurate fiber optic measurements and a model with free space input (1.035"-40 threaded and 25 mm unthreaded flange available).

For models with detector areas smaller than Ø 0.4 mm, the use of fiber adapters is only recommended to a limited extent, since coupling losses and instabilities can occur. If the focus is on high-precision fiber optic measurements, using FC-models with fixed optical fiber input will usually give the best results.

All the OE-300 models can be easily mounted to standard M4 and 8-32 UNC threaded optical post holders via the optionally available post holder adapter type PRA-PAP.

APPLICATIONS

  • All purpose low-noise photoreceiver (O/E converter) for the MHz range
  • Time resolved optical pulse and power measurements
  • Laser intensity noise measurements (RIN)
  • Optical front-end for oscilloscopes, spectrum analyzers, A/D converters and RF lock-in amplifiers
Models

OE-300-SI-10-FST

OE-300-SI-10-FS

OE-300-SI-30-FST

OE-300-SI-30-FS

OE-300-IN-01-FC

OE-300-IN-03-FST

OE-300-IN-03-FS

Detector Type
Si-PIN Si-PIN InGaAs-PIN InGaAs-PIN
Detector size [mm]
1.0×1.0 Ø 3.0 Ø 0.08 Ø 0.3
Spectral Range[nm] 400 - 1000 320 - 1000 900 - 1700 800 - 1700
NEP (Dependent on Gain Setting) [/√Hz] 76 fW - 322 pW 81 fW - 325 pW 47 fW - 180 pW 52 fW - 192 pW
Datasheet 1.45MB 1.47MB 1.27MB 1.42MB

The following characteristics are valid for all models:

Performance Range Low Noise High Speed
Gain Setting [V/A](Transimpedance) 102 103 104 105 106 107 103 104 105 106 107 108
Bandwidth(−3 dB) [MHz] 200 (100)1 80 (60)1 14 3.5 1.8 0.22 175 (100)1 80 (60)1 14 3.5 1.8 0.22
Gain Accuracy ±1 % (transimpedance)
Low Pass Filter switchable to 1 MHz and 10 MHz
Output Performance ±1 V (@ 50 Ω load), for linear amplification
Power Supply ±15 V, +150 mA/−100 mA typ., ±200 mA recommended
Control Interface 5 opto-isolated digital inputs, TTL/CMOS compatible, analog offset control voltage input
Case 170 x 60 x 45 mm (L x B x H), weight 320 g (0.74 lb.)

Offset adjustable by trimpot or external control voltage. LED overload indication. Output short-circuit protected. Power supply via 3-pin Lemo® socket. A mating connector is provided with the device. Optional power supply PS-15 available. For further information please view the datasheet or contact FEMTO.
