PAS-853B Wide Range Ohmmeter

Updated:2024-05-29

Brand: Prostat
Model: PAS-853B
Description: The PAS-853B is a wide range ohmmeter capable of measuring from 0.01 Ω to 9.99 x 1012 Ω, making it a single meter to meet requirements of almost all standards for resistance measurements.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

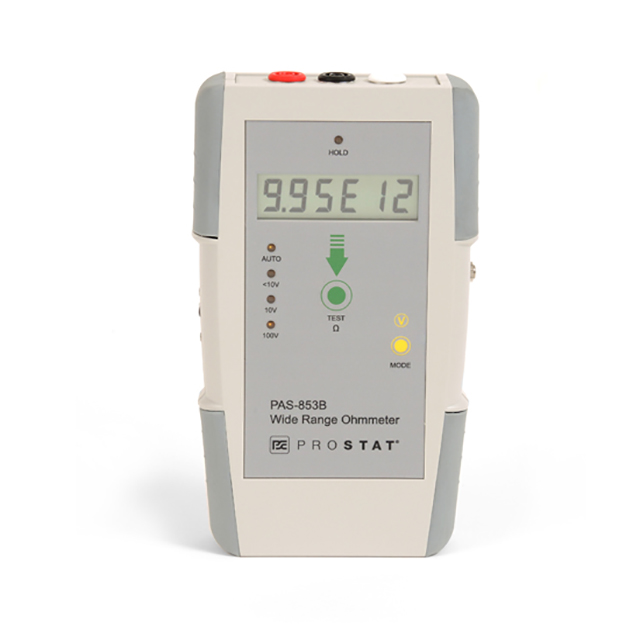

PAS-853B Wide Range Ohmmeter Description：

Product Manual Datasheet

Hand Held Wide Range Resistance Meter

The PAS-853B is a wide range ohmmeter capable of measuring from 0.01 Ω to 9.99 x 1012 Ω, making it a single meter to meet requirements of almost all standards for resistance measurements.

Designed to Support ANSI/ESD S20.20

The PAS-853B is designed specifically for ESD Plant Auditors who must make many measurements quickly while supporting ANSI/ESD S20.20 program standard and periodic verification requirements.

Use it for Packaging per ANSI/ESD 541

The PAS-853B performs in accordance with standard resistance measurement practices outlined in ANSI/ESD S541 Packaging and meets all audit requirements of ESD TR53.

Variable & Constant Test Voltages

<10 Volts Variable from 0.01 to 9.9x103 ohms
10 Volts (±<5% Constant Voltage) from 1.0x104 to 9.99x105 ohms
100 Volts (±<2% Constant Voltage) from 1.0x106 to 9.99x1012 ohms

Double the Number of Measurements

The PAS-853B is a lightweight meter with a built-in electrification period of 3 seconds for measurements from 1.00E-2 Ω to 9.99E+5 Ω and 8 seconds from 1.00E+6 Ω to <1.00E+12 Ω, making it a quick and easy way to measure more surfaces throughout your day.

Fully Automatic with an Option of Continuous Mode

The PAS-853B will determine the resistance range and test voltage automatically when you make measurements. After the minimum electrification period, the display will freeze an accurate measurement for 10 seconds. Alternatively, the meter has the option of measuring in Continuous mode, which will continue to measure until Reset is pressed.

Features

Wide Resistance Measurement Range from 0.01 ohm to 9.99x1012 ohms

Nominal Full Range Tolerance Averages <±5%

Fully Automatic Resistance Range, Test Voltage and Electrification Period Control

Automatic or Continuous Electrification Control

Rugged High Performance 80 inches (200cm) Test Leads Included

Large, Easy to Read LCD Display

Meets requirements of ESD Association Standards for material and audit resistance measurement requirements

Certificate of Calibration Traceable to NIST included

Technical Specifications

General Specifications

Characteristics
Measuring Range	0.01 Ω to 9.99 x 10¹² Ω
Measurement Modes	Auto, Manual and Continuous
Display	69.8 mm x 30.5 mm (2.75” x 1.20") 6 digit - 7 segment TN display
Battery Power	One 9V Alkaline Transistor Battery
Battery Life	> 50 hours
Operating Temperature	18°C to 32°C (65°F to 90°F)
Operating Relative Humidity	10% – 60%, non-condensing
Operating Altitude	2000 m
Dimensions (WxHxD	109 mm x 184 mm x 36 mm 4.30 in x 7.25 in x 1.40 in
Weight	375 g (13.2 oz)
Case Material	ABS Plastic with Rubber Side Grips
Color	Grey
Warranty	1 Year Limited Warranty

Resistance Measurement Specifications

Measuring Range	Accuracy¹
0.1E-1 to 1.99E+0Ω	±10%, ±2 Counts
2.00E+0 to 9.99E+9Ω	±2%, ±2 Counts
1.00E+10 to 9.99E+10Ω	±5%, ±2 Counts
1.00E+11 to 9.99E+11Ω	±10%, ±2 Counts
1.00E+12 to 9.99E+12Ω	±20%, ±4 Counts

Test Voltages

Test Voltage	Constant Voltage	Auto Mode	Manual Operation
<10V	Variable (Based on resistance Load)	Functional within range 0.01 Ω to <1.0E+4 Ω	Resistance Range: 0.01E-1 to 9.99E+9 Ω
10V	Constant Voltage (Under Load)	Functional within range 1.0E+4 Ω to <1.0E+6 Ω	Resistance Range: 0.9E+4 to 9.99E+10 Ω
100V	Constant Voltage (Under Load)	Functional within range 1.0E+6 Ω to <1.0E+13 Ω	Resistance Range: 0.90E6 to 9.99E12 Ω

Measurement Modes

Mode	Resistance Range	Test Voltage
Auto	Automatic	Automatic	@<10V: 0.01 to <1.00E+04 Ω @ 10V: 1.00E+04 to <1.00E+06 Ω @100V: 1.00E+06 to <2.00E+14 Ω
<10V Manual Operation	0.01E-1 to 9.99E9 Ω	0.01 to 9.99V
10V Manual Operation	0.98E4 to 9.99E10 Ω	Nominal, Semi-Constant
100V Manual Operation	0.98E6 to 9.99E12 Ω	100V (±<5V) Constant Voltage

Electrification Period

Resistance Range	Measurement Period	Minimum Electrification Period
1.00E-2 Ω to <1.00E6 Ω	2 seconds	3 seconds
1.00E6 Ω to <1.00E12 Ω	2 seconds	8 seconds
1.00E12 Ω to <1.00E13 Ω	Variable	12 seconds
