PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies

Updated:2023-05-29

Views:1302

  • Brand:Ophir
  • Model:PD10-pJ-C
  • Description: The PD10-pJ-C is a photodiode energy meter for very low energies with a 10mm aperture. It can measure energies from 10pJ up to 180nJ. It can operate at repetition rates up to 20kHz and covers the spec
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies Description:

The PD10-pJ-C is a photodiode energy meter for very low energies with a 10mm aperture. It can measure energies from 10pJ up to 180nJ. It can operate at repetition rates up to 20kHz and covers the spectral range from 0.2 - 1.1µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

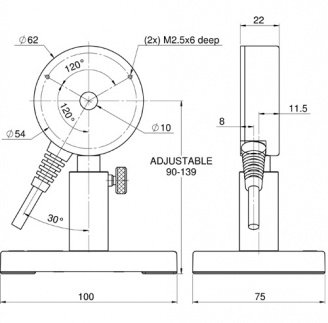

PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies Drawing:

PD10-pJ-C Drawing

PD10-pJ-C 7Z02945 photodiode Energy Meter For Very Low Energies Specifications:

Aperture Ø10mm
Spectral Range 0.2-1.1µm
Energy Range 10pJ-180nJ
Maximum Frequency 20,000Hz
Dimensions Ø62 W x 22 D (mm)
Max Pulse Energy 180nJ
Max Average Power Density 5W/cm²
Max Pulse Width 0.005 ms
Max Average Power 0.5mW
