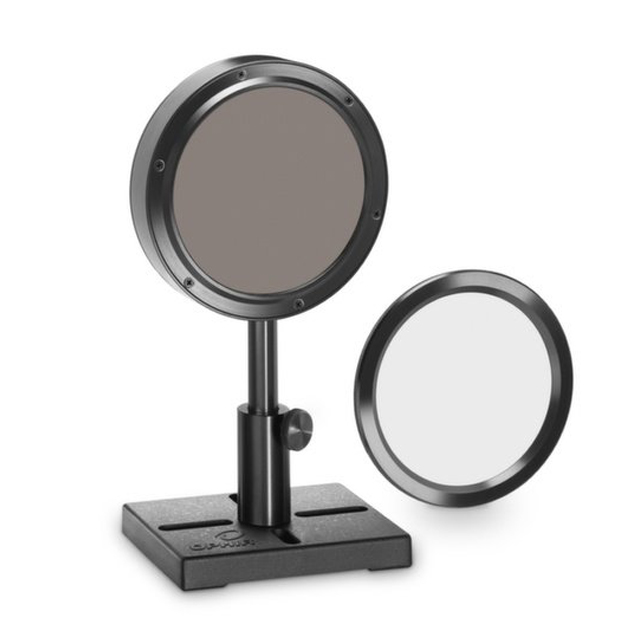

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter

Updated:2023-05-31

Views:1759

  • Brand:Ophir
  • Model:PE100BF-DIF-C
  • Product description: The PE100BF-DIF-C is a large aperture pyroelectric energy meter with a removable diffuser. It has a 96mm aperture with diffuser off and 85mm aperture with diffuser on. It can measure energies from 0.4
  • Feedback
  • WeChat

    QQ

    Online Service

product details

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter Description:

The PE100BF-DIF-C is a large aperture pyroelectric energy meter with a removable diffuser. It has a 96mm aperture with diffuser off and 85mm aperture with diffuser on. It can measure energies from 0.4mJ up to 40J. It can operate at repetition rates up to 200Hz and is calibrated for 0.532, 1.064 and 1.55µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter Drawing:

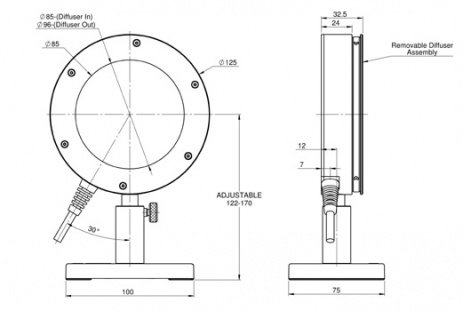

PE100BF-DIF-C Drawing

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter Specifications:

Absorber Type BF with removable diffuser
Aperture Ø96mm, Ø85mm with diffuser
Spectral Range 0.15-3µm, 0.4-2.5µm with diffuser
Energy Range 400µJ – 40J
Maximum Frequency 200Hz
Dimensions Ø125 W x 33 D (mm)
Max Pulse Energy 40J
Max Average Power Density 20W/cm²
Max Pulse Width 20 ms
Damage Threshold(for <100ns) 0.8J/cm²
Damage Threshold(for 2ms) 10J/cm²
Max Average Power 25W
