SR05-D1A3 Solar Radiation Sensor

Updated:2023-05-31

Views:1314

  • Brand: Hukseflux
  • Model:SR05-D1A3
  • Description: SR05 series is the most affordable range of pyranometers meeting ISO 9060 second class requirements. SR05 measures solar radiation received by a plane surface, in W/m², from a 180 ° field of view angl
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

SR05-D1A3 Solar Radiation Sensor: User's Manual Datasheet

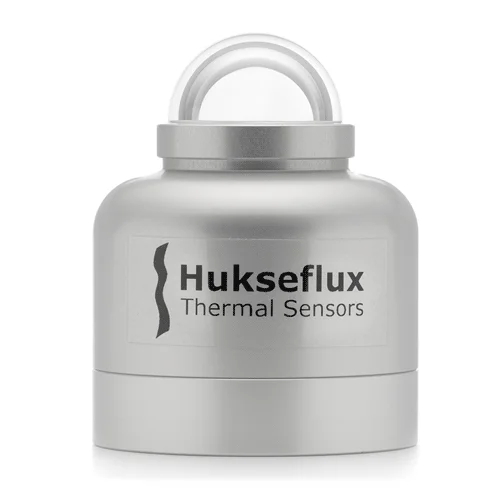

SR05 series is the most affordable range of pyranometers meeting ISO 9060 second class requirements. SR05 measures solar radiation received by a plane surface, in W/m², from a 180 ° field of view angle. It is ideal for general solar radiation measurements in (agro-)meteorological networks and PV monitoring. The pyranometer is easy to mount and install, in particular with SR05’s ball levelling mechanism. Version SR05-D1A3 offers Modbus over RS-485 and 0-1 V output.

SR05 pyranometer mounting and leveling

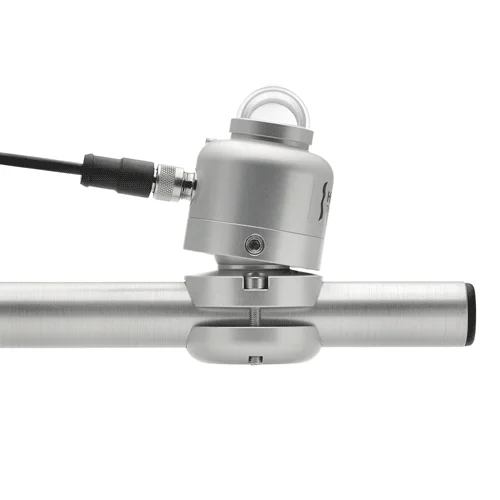

Optionally SR05 has a unique ball levelling mechanism and tube mount for easy mounting and levelling on a (non-)horizontal surface or tube. As is shown in the images.

Design and Output

SR05 pyranometer employs a thermopile sensor with black coated surface, one dome and an anodised aluminium body with visible bubble level. SR05 has a variety of industry standard outputs, both digital and analogue:

  • SR05-D1A3: digital sensor with Modbus over RS-485 and analogue 0-1 V output
  • SR05-D2A2: digital sensor with Modbus over TTL and analogue 4–20 mA output
  • SR05-A1: analogue sensor with analogue millivolt output
  • Suggested Use

  • general solar radiation measurements
  • (agro-)meteorological networks
  • PV power plant monitoring
  • Areas of Application

  • Building physics / insulation, thermal comfort and energy budget measurement
  • Meteorology / surface energy flux measurement
  • Solar energy / PV system performance monitoring
  • SR05-D1A3 Solar Radiation Sensor Specifications:

    Measurand hemispherical solar radiation
    ISO 9060:2018 classification spectrally flat Class C (second class)
    IEC 61724-1:2017 compliance class C
    Application PV monitoring small sized meteorology / climatology, other
    Heater no
    Calibration uncertainty < 1.8 % (k = 2)
    Calibration traceability to WRR
    Spectral range (wavelength) 285 to 3000 ×10⁻³ m
    Rated operating temp range -40 to +80 °C
    Standard cable length 3 m
    Rated operating voltage 5 to 30 VDC range
    Levelling ball levelling (optional)
    Output :
    Communication protocol Modbus over RS-485
    Digital output irradiance in W/m² and instrument body temperature in °C
    Analogue output 0-1 V
    Transmitted range 0-1600 W/m²
    Version order codes SR05-D1A3, SR05-D1A3-BL, SR05-D1A3-TMBL
    Options longer cable lengths (10, 20 metres)extension cable with connector pair (10, 20 metres) with ball levelling (Specify article number BL01 when ordering) with ball levelling and tube mount (for tube diameters 25 to 40 mm) (TMBL01) OEM versions
