PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter

Updated:2023-05-30

Brand：Ophir
Model：PE25BF-C
Product description: The PE25BF-C is a high damage threshold pyroelectric energy meter with a 24mm aperture. It can measure energies from 60µJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spect
Data download

Feedback
WeChat

QQ

Online Service

product details

PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter Description：

The PE25BF-C is a high damage threshold pyroelectric energy meter with a 24mm aperture. It can measure energies from 60µJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.15 - 3, 10.6µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

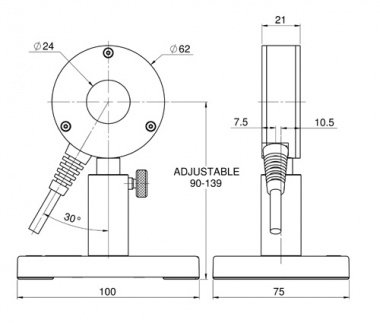

PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter Drawing：

PE25BF-C Drawing

PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter Specifications：

Absorber Type	BF
Aperture	Ø24mm
Spectral Range	0.15-3µm, 10.6µm
Energy Range	60µJ-10J
Maximum Frequency	250Hz
Dimensions	Ø62 W x 21 D (mm)
Max Pulse Energy	10J
Max Average Power Density	20W/cm²
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	0.8 J/cm²
Damage Threshold(for 2ms)	10 J/cm²
Max Average Power	15W
