SRA30-M2-D1 digital albedometer

Updated:2023-05-30

Brand: Hukseflux
Model：SRA30-M2-D1
Description: SRA30-M2-D1 digital spectrally flat Class A albedometer is an instrument that measures global and reflected solar radiation and the solar albedo, or solar reflectance. SRA30-M2-D1 is the most accurate
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SRA30-M2-D1 digital albedometer： Datasheet

SRA30-M2-D1 digital albedometer

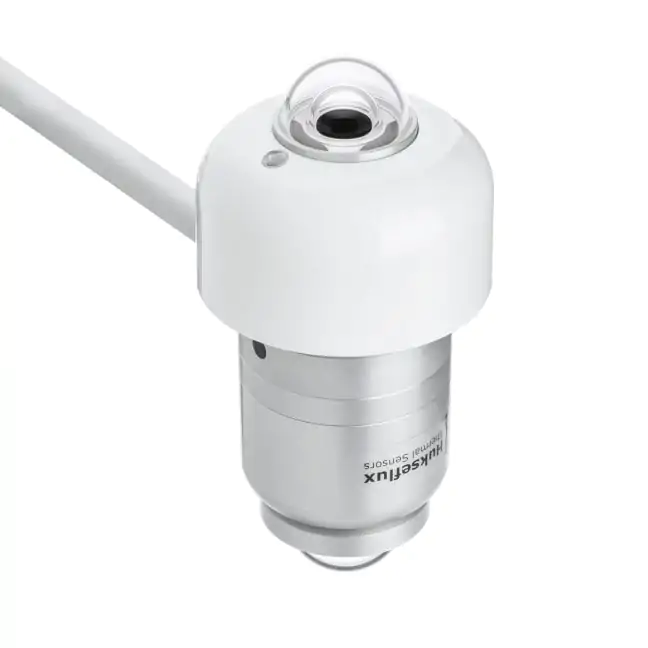

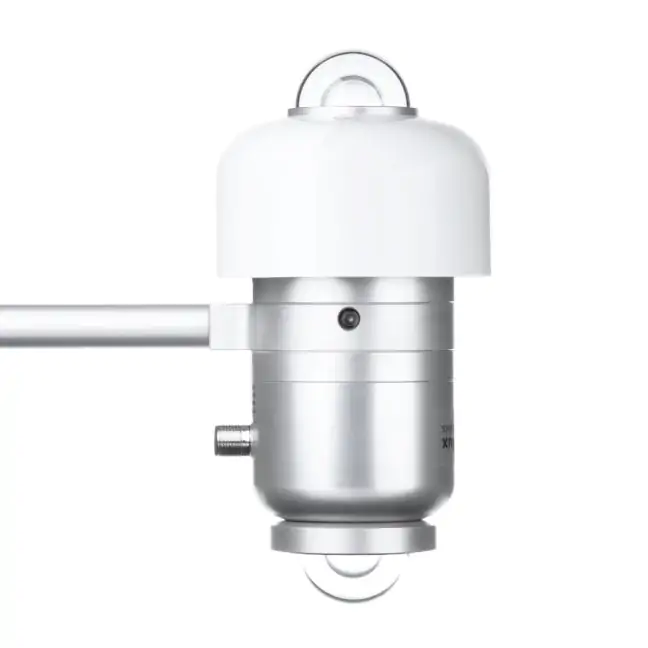

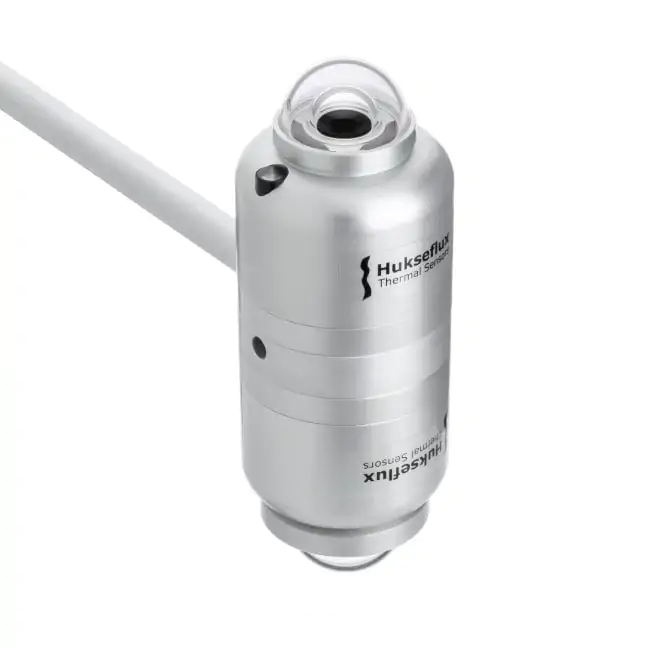

SRA30-M2-D1 consists of two identical pyranometers model SR30-M2-D1, one facing up, and one facing down. To create an SRA30-M2-D1, the two sensors are combined with one AMF03 albedometer mounting kit. AMF03 includes a fixture with a rod for mounting purposes and a glare screen. The user assembles these modular components into an SRA30 albedometer. Mounting hardware, tools, mounting, and fixation instruction are part of AMF03. The modular design of SRA30 facilitates maintenance and calibration.

Digital Albedometer for the PV industry

SRA30-M2-D1 is the most accurate albedometer available. Its benefits:

Heating and ventilation included, complying with IEC 61724-1 Class A PV system requirements

Digital outputs: easy implementation & servicing

Best-in-class temperature response < ± 0.4 % (-30 to +50 °C), best “zero offset a” and best calibration uncertainty

Test certificates for temperature- and directional response are included as required by ISO 9060

Re-calibration registers are fully accessible to users

Modular; can be calibrated as separate pyranometers

Using the SRA30 albedometer is easy

The instrument is composed of two SR30 spectrally flat Class A pyranometers; the up-facing one measuring global solar radiation, the downfacing one measuring reflected solar radiation. When using SR30, the irradiance in W/m² is transmitted via the Modbus protocol over 2-wire RS-485. The working principle and specifications of the pyranometers can be found in the SR30 user manual. SRA30 can be connected directly to commonly used data logging systems.

Albedometers are used for general meteorological observations, building physics, roof reflectance studies, climate studies, and solar collector testing. A common application is for outdoor solar radiation balance measurements as part of a meteorological station. Albedometers are increasingly popular in bifacial PV module performance monitoring. This application requires horizontal leveling; a bubble level and a mounting rod are included. Each SR30-M2-D1 pyranometer includes a tilt sensor.

Heated for high data availability, featuring RVH technology

High data availability is attained by heating of the outer dome using ventilation between the inner and outer dome. RVH – Recirculating Ventilation and Heating – technology, developed by Hukseflux, suppresses dew and frost deposition and is as effective as traditional ventilation systems, without the maintenance hassle and large footprint.

Suggested Use

PV monitoring with Bifacial solar modules

High-accuracy meteorological observations

Building physics, roof reflectance studies

Extreme climates (tropical / polar)

Areas of Application

Meteorology / surface energy flux measurement

Solar energy / PV system performance monitoring

SRA30-M2-D1 digital albedometer Specifications：

Measurand	global solar radiation and reflected solar radiation
Optional measurand	albedo or solar reflectance ,net solar radiation
SRA30-M2-D1 specifications	:
Included	2 x SR30-M2-D1, 1 x AMF03
IEC 61724-1 compliance	meets Class A and B PV monitoring system requirements
Calibration uncertainty	< 1.2 % (k = 2)
Heating	included
Ventilation	included
Mounting	mounting rod with 15 x 10⁻³ m diameter
Rated operating temperature	-40 to +80 °C range
SR30-M2-D1	:
Included sensors	2 x identical ISO 9060 spectrally flat Class A pyranometer SR30-M2-D1
Temperature response	< ± 0.4 % (-30 to +50 °C)
Temperature response test and directional response test	reports included
Power consumption	< 3 W at 12 VDC
Standard cable length	5 m (see options)
Digital output	:
Output	irradiance in W/m²; instrument body temperature in ° C; tilt angle in °; internal humidity in %; ventilator speed in RPM
Communication protocol	Modbus
Transmission mode	RTU
Hardware interface	2-wire (half duplex) RS-485
Rated operating voltage range	8 to 30 VDC
AMF03	:
Included parts	1 x glare screen; 1 x AMF03 fixture with rod; 1 x conical positioner; 2 x M5x12 socket head cap screw; 1 x M6x8 socket head cap screw, 2 x M8x12 set screw, 1 x mounting and fixation instruction sheet
Options	longer cables, in multiples of 5 m
