PE50-C 7Z02936 General Purpose Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：PE50-C
Description: The PE50-C is a general purpose pyroelectric energy meter with a 46mm aperture. It can measure energies from 10µJ up to 10J. It can operate at repetition rates up to 10kHz and covers the spectral rang
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE50-C 7Z02936 General Purpose Pyroelectric Energy Meter Description：

The PE50-C is a general purpose pyroelectric energy meter with a 46mm aperture. It can measure energies from 10µJ up to 10J. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.15 - 3µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

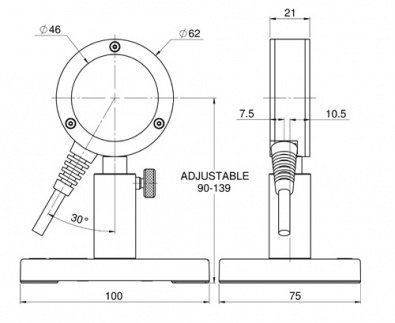

PE50-C 7Z02936 General Purpose Pyroelectric Energy Meter Drawing：

PE50-C Drawing

PE50-C 7Z02936 General Purpose Pyroelectric Energy Meter Specifications：

Absorber Type	metallic
Aperture	Ø46mm
Spectral Range	0.15-3µm
Energy Range	10µJ-10J
Maximum Frequency	10,000Hz
Dimensions	Ø62 W x 21 D (mm)
Max Pulse Energy	10J
Max Average Power Density	20W/cm²
Max Pulse Width	5 ms
Damage Threshold(for <100ns)	0.1J/cm²
Damage Threshold(for 2ms)	6J/cm²
Max Average Power	15W
