IMKO TRIME-PICO 64/32 Portable Soil Moisture Measurement Sensor

Updated:2025-01-09

Brand: Gentec-EO
Model: PICO 64/32
Description: The intelligent and compact TRIME-PICO64/32 sensors are measurement devices for continuous and non-destructive determination of volumetric soil moisture and soil temperature. They are designed for sta
Data download

Feedback
WeChat

QQ

Online Service

Product Details

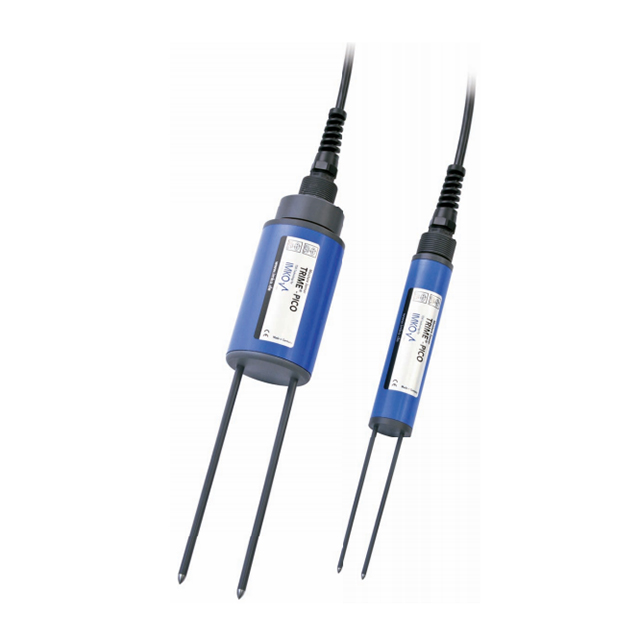

IMKO TRIME-PICO 64/32 Portable Soil Moisture Measurement Sensor Description：

User's Manual

The intelligent and compact TRIME-PICO64/32 sensors are measurement devices for continuous and non-destructive determination of volumetric soil moisture and soil temperature. They are designed for stationary subterranean field use. A variety of installation options (greater depth, vertical or horizontal orientation) offer a wide range of applications.

TRIME-PICO64/32 systems require an external 7-24V/AC power supply. They are designed for con-nection to a data logger or a PC for monitoring and data logging purposes.

Accessories

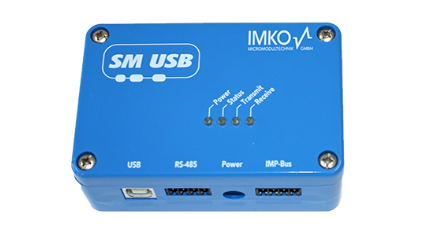

SM-USB

USB to RS485 and IMP bus converter module. For connecting SONO probes to a PC under Windows via the serial interface. For creating your own calibrations, test measurements with measurement data storage and other functions.

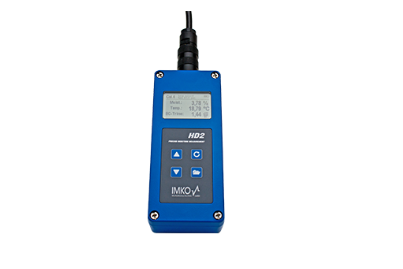

HD2 Mobiles Display

Robust battery-operated mobile display unit for various probes: SONO M1, -M1C, -M2.

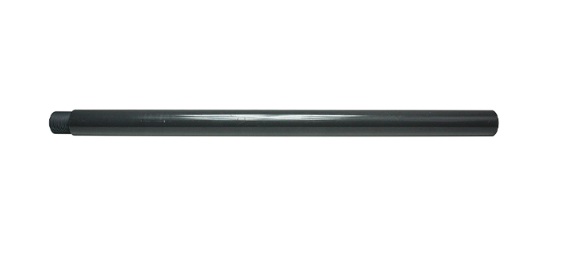

Extension

PICO 32/64/P2/TRIME IT/-ITC installation extension 0.5m incl. intermediate threaded piece. Ø32mm
PICO 32/64/P2/TRIME IT/-ITC installation extension 1.0m incl. intermediate threaded piece. Ø32mm

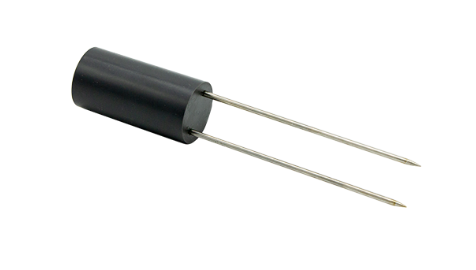

Vorstechsonde 32mm

For pre-drilling the floor before installing the probe. Rod length: 110mm

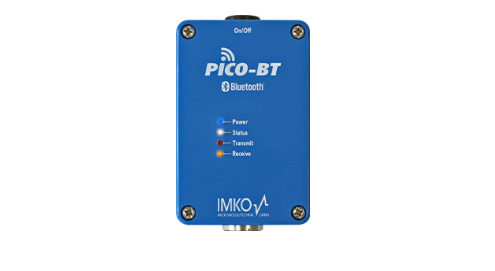

PICO-BT

For wireless transmission of soil moisture and soil temperature measurement data to an Android mobile device (version 2.2 or higher) running the Trime Blue app.
Internal NiMh 2000mAh/4.8V battery pack (sufficient for approx. 1500 measurements when fully charged)

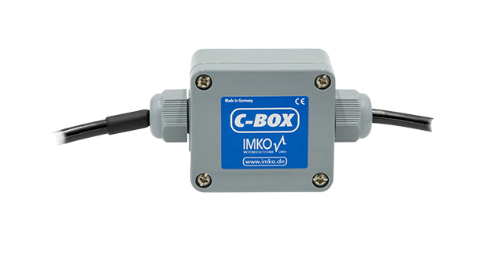

C-Box

Voltage / current transformer for PICO probes from 0..1V voltage level to current signal. 0....20mA (Option1) 4...20mA (Option2); cable lengths up to 100m possible; protection class IP65.

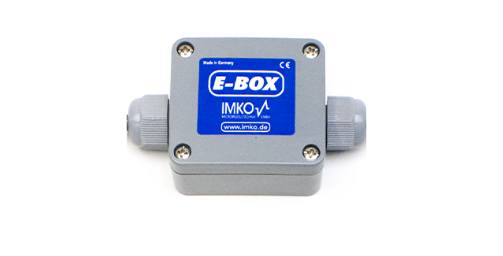

E-Box

Optional accessory for PICO 32/64 for extending the PICO probe cable up to protection class IP65.

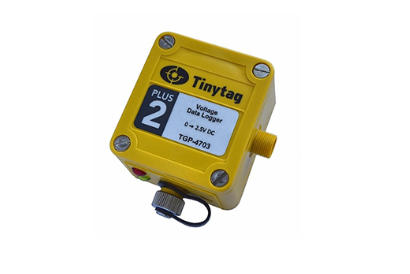

Logger (ask CJ)

On request

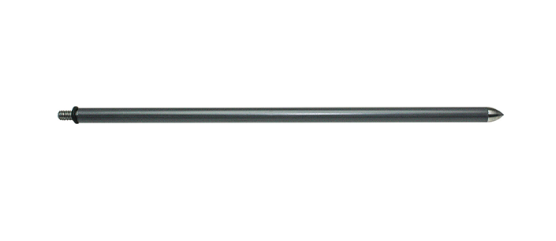

Spare rod

Spare rod PICO 32, 50mm, ø3.5mm
Spare rod PICO 32, 80mm, ø3,5mm

Spare rod PICO 32, 100mm, ø3,5mm
Spare rod PICO 32, 110mm, ø3,5mm

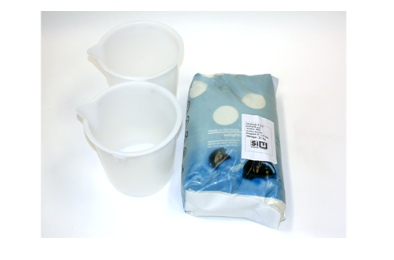

Calibration set

For basic calibration of TRIME PICO soil moisture probes.

Specifications

PICO 32
Temperature range	-15°C … 50°C
Power supply	+7V to +24V DC
Special conditions	Optional probe rods in 50, 80, 100mm length
Signal output	2 x analogue output 0..1V Output 1: Humidity in % Output 2: Temperature or optionally conductivity or standard deviation
Interfaces	RS485 or IMP bus
Sensor dimension	155 x 32 mm (length x diameter)
Weight	–
IP protection class	IP68
PICO 64
Temperature range	-15°C … 50°C
Power supply	+7V to +24V DC
Special conditions	Optional probe rods in 100mm length
Signal output	2 x analogue output 0..1V Output 1: Humidity in % Output 2: Temperature or optionally conductivity or standard deviation
Interfaces	RS485 or IMP bus
Sensor dimension	155 x 36 mm (length x diameter)
Weight	–
IP protection class	IP68
