VPE-1000 Digital Ultrasonic Leak Detector (AccuTrak)

Updated:2023-09-08

Brand: AccuTrak
Model: VPE-1000
Product description: When powerful performance is needed and budgets are limited, choose the versatile Superior AccuTrak® VPE-1000 Ultrasonic Leak Detector. It is the first low cost digital ultrasonic leak detector, offer
Data download

Feedback
WeChat

QQ

Online Service

product details

VPE-1000 Digital Ultrasonic Leak Detector (AccuTrak) Description：

User's Manual Specification Table

When powerful performance is needed and budgets are limited, choose the versatile Superior AccuTrak® VPE-1000 Ultrasonic Leak Detector. It is the first low cost digital ultrasonic leak detector, offering extraordinary features at a fraction of the cost of other ultrasonic instruments. The versatile AccuTrak® VPE-1000 features separate ultra-sensitive sensors for both airborne and contact ultrasound. Extremely sensitive to the ultrasonic sound of leaks and friction in industrial systems, the VPE-1000 Ultrasonic Leak Detector uses a technique called "heterodyning" to translate ultrasound to a lower frequency which our ears can interpret. AccuTrak® Ultrasonic Leak Detectors are so sensitive they can hear the blink of an eye, yet most background noise will not interfere with leak detection accuracy. Patented technology uses a microcomputer and digital circuitry making the AccuTrak® VPE-1000 the most accurate and repeatable ultrasonic leak detector available in its class.

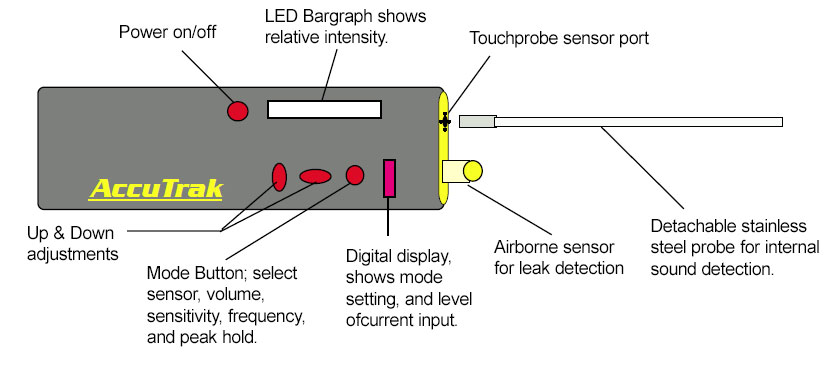

VPE-1000 Diagram

Applications

The VPE-1000 is perfect for schools, hospitals, hotels, and other large institutional or industrial environments. the VPE-1000 can be used for a variety of leak detection and plant maintenance applications.

Leak Detection: Air, Vacuum, Refrigerants; ANY GAS!

Steam Traps: Detect live steam loss in seconds!

Valves: Detect/hear internal leakage in check, ball, needle, gate or any type of valve! Diagnose thermal expansion valves in just five minutes!

Bearings: Hear wear and lubrication problems before damage is done!

Electric Arc and Corona: Inspect circuit breakers, relays, and buss bars! Check for corrosion on contacts and proper insulation!

Pneumatics and Hydraulics: Inspect controls, hoses, tools, fittings and internal cylinders with ease!

Vibration: Detect the ultrasonic sound generated by excessive friction!

Fan Belts

Features

Digital LED Indicators: Both alphanumeric and bar-graph!

Digital Peak Hold: Holds highest level for easy readability!

Separate Volume/Sensitivity: Independent controls allow you to "zoom" into sounds in noisy areas!

Dual Sensors:Each with excellent frequency response, and independent settings

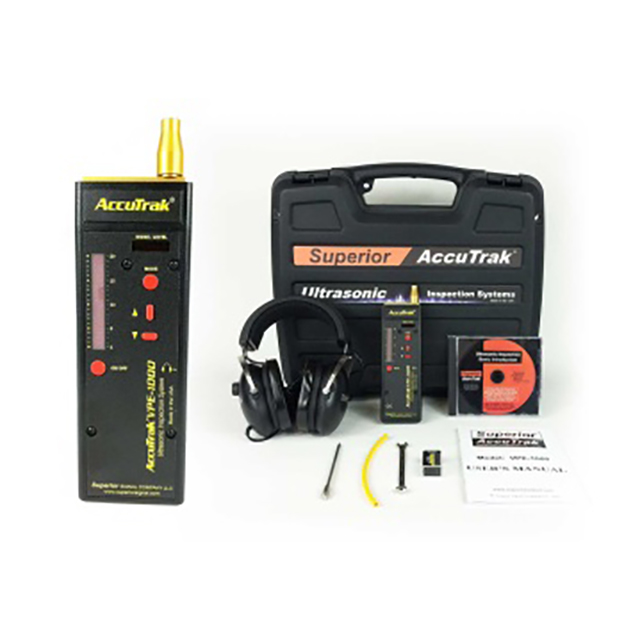

Includes Everything You Need!

Detector

Touchprobe & waveguide attachments

Comfortable over the ear headset

Battery

Owners manual

Instructional video

Hard case
