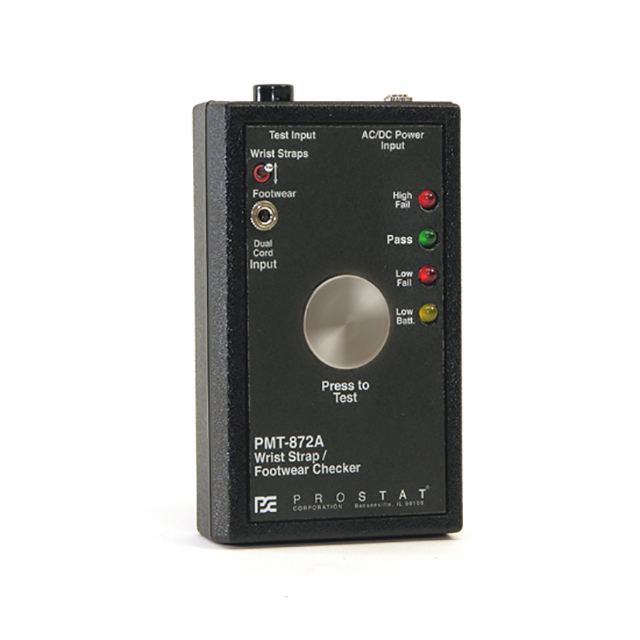

PMT-872A ESD Wrist Strap/Footwear Checker

Updated:2024-05-29

Brand: Prostat
Model: PMT-872A
Product description: The PMT-872 is a unique, highly portable, battery operated multi-function PASS/FAIL performance verifier. It confirms the operational resistance range of wrist straps, heel straps and ESD controlled f
Data download

Feedback
WeChat

QQ

Online Service

product details

PMT-872A ESD Wrist Strap/Footwear Checker Description：

Product Manual Datasheet

The PMT-872 is a unique, highly portable, battery operated multi-function PASS/FAIL performance verifier. It confirms the operational resistance range of wrist straps, heel straps and ESD controlled footwear. The PMT-872 features a large test button, audible PASS BEEP with Green PASS light, Red LOW and HIGH Fail lights, and yellow battery low indicator. Additional connections are provided for an optional AC-DC Power adapter and for testing dual conductor wrist straps. A front panel toggle switch allows testing of wrist straps and footwear at one station. A footwear test plate, snap connector, and lead can be purchased separately.

Features

Battery operated multi-function PASS/FAIL performance verifier.

Confirms the operational resistance range of wrist straps, heel straps and ESD controlled footwear.

Features a large test button, audible PASS BEEP with Green PASS light, Red LOW and HIGH Fail lights, and yellow battery low indicator.

Additional connections are provided for an optional AC-DC Power adapter and for testing dual conductor wrist straps.

Technical Specifications

TEST VOLTAGE & CURRENT	Nominal 9 volts and 0.006 µA to 1.0 mA
POWER	One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22); or, Optional AC/DC converter.
FACTORY ADJUSTED MEASUREMENT RANGES & ACCURACY	Wrist Straps: 8.0x105 Ohms to 1.0x107 Ohms < ±5% (Factory Default) Footwear: 8.0x105 Ohms to 1.0x108 Ohms < ±5% (Factory Default) Wrist Straps: 8.0x105 Ohms to 3.5x107 Ohms < ±5% Footwear: 8.0x105 Ohms to 3.5x107 Ohms < ±5%
TOGGLE RANGE SELECTION	UP for Wrist Straps and DOWN for Footwear
PUSH BUTTON	27 mm Diameter, Metal spring loaded
LIGHT INDICATORS (VERTICALLY ORIENTED. FROM TOP TO BOTTOM)	FAIL High: Red LED PASS: Green LED with Audible Buzzer FAIL Low: Red LED BATTERY LOW: Yellow LED (At <8.2V Battery Voltage)
AUDIBLE SIGNAL	Fast, Individual "Beeping" Sound with Green PASS LED on.
OPERATING RANGE	5ºC to 49ºC (40ºF to 120ºF)
STORAGE TEMPERATURE	-15ºC to 60ºC (5ºF to 140ºF)
RELATIVE HUMIDITY	0% to 90%
Battery Life	40 hours typical
Dimensions	115 mm x 69 mm x 26 mm
WEIGHT	6 oz.
