Gentec-EO PRONTO-50-W5 Portable Laser Power Meter

Gentec-EO PRONTO-50-W5 Portable Laser Power Meter Description：

Datasheet(CN) Datasheet(EN) User's Manual

Gentec-EO PRONTO-50-W5 Portable laser power meter for up to 50 W.

FEATURES

INTUITIVE USER INTERFACE

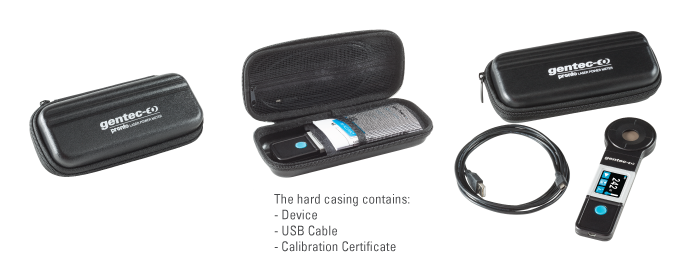

PROTECTIVE CASING INCLUDED

HANDS-FREE OPERATION

DATA TRANSFER TO PC

Measure extremely high average power density lasers with the W absorber

The W absorber can handle tightly focused beams thanks to its extremely high average power density damage threshold of 100 kW/cm2. It measures from UV to IR but is not suitable for CO2 laser wavelengths.

Ideal for UV lasers and tightly focused beams

Very low risk of damaging the equipment

Leverage serial commands

Use our serial commands to communicate directly with the meter without using Gentec-EO's software. You can do so using a terminal emulator software, like PuTTY, or you can just integrate them directly into your own software. All essential functions of the meter are covered by a command. Refer to the user manual of the meter for the list of all commands available.

Build your own software

Suit your unique laser application requirements

Automate your measurements

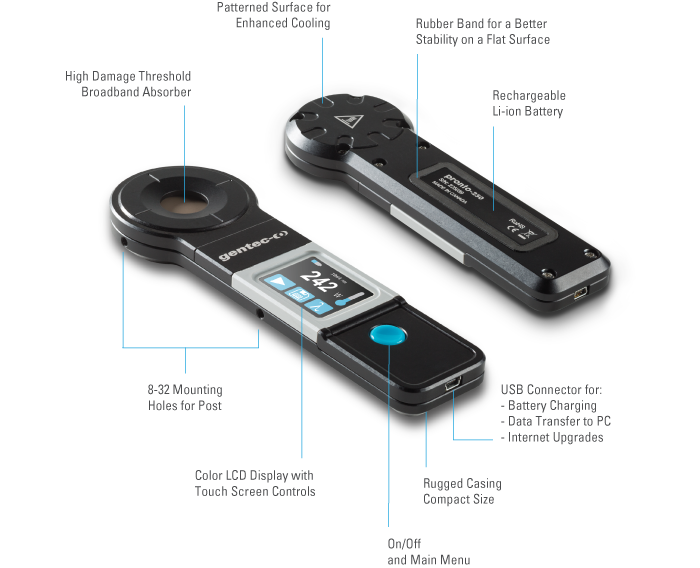

Key Features

Pocket-Size

This mid to high power handheld probe is so compact it fits in your pocket!

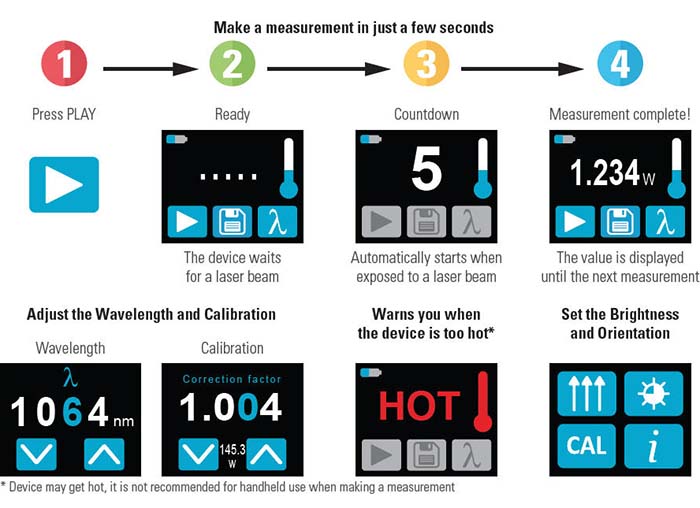

Easy-to-Use

The touch screen color LCD allows for a friendly user interface. You can make a measurement with just the touch of a button!

User Settable

You can set the wavelength, brightness and screen orientation to adapt to your application.

Data Logging

Save your data to the internal memory and then transfer it to your PC over the USB connection.

From Low to High Powers

Thanks to a low noise level and high damage threshold, the PRONTO can measure powers from 1 W to 50 W.

Fully Calibrated

The PRONTO-50-W5 comes fully calibrated: every wavelength between 248 nm and 2.5 μm.

Hands-Free Operation

Place it on a flat surface or use one of the 2 threaded holes that we have integrated in the casing for safe use with optical stands.

Specifications
