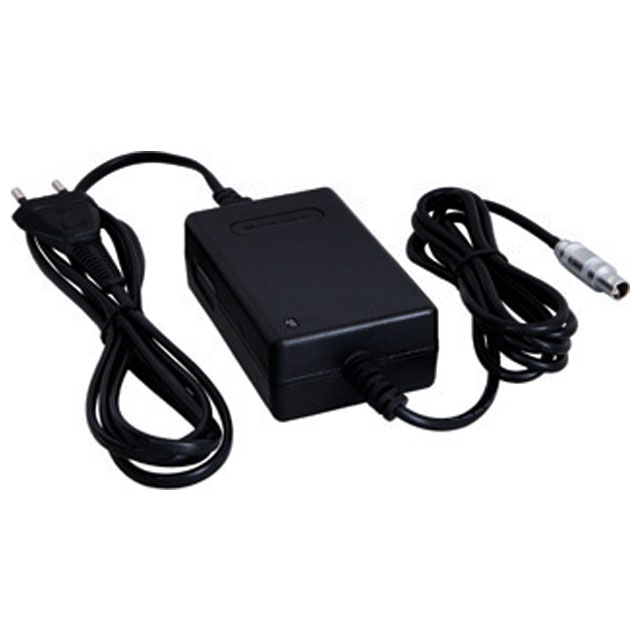

Input voltage 100 - 240 VAC
Output ±15 V, +500/−400 mA
Shielded output cord with Lemo® plug
Floating design to avoid ground loops
Short-circuit protected
Ripple typ. 15 mVRMS
Suitable for all FEMTO modules
Available as european, australian and US version
Ordering Code |
PS-15-25-L (EU) | PS-15-25-L (US) | PS-15-25-L (AUS) |
Datasheet | 104 KB | 104 KB | 57 KB |
This power supply is exclusively designed for use with FEMTO amplifier modules. Before use, take care to follow general electrical safety rules and notice the information shown in this datasheet and at the type label on the power supply. Do not use visibly damaged power supplies. Do not use this power supply in security relevant applications or in chemical aggressive environment. Do not expose this power supply to unusual mechanical stress or vibrations. During use do not expose the unit to direct sunlight and do not cover it because cooling is made by convection. Respect the general rules for fire prevention. Use in original condition only, do not open, do not repair the unit. When operation is no longer possible or considered to be unsafe, the power supply must be taken out of service and be secured against unintended operation.
