PSL 5.0 Ultrasonic Level Controller

Updated:2024-04-03

Brand: Pulsar
Model: PSL 5.0
Product description: The PSL 5.0 Pump and Lift Station Level Controller is an ultrasonic level sensor that mounts above the liquid surface for accurate and reliable non-contacting level measurement. The PSL 5.0 is ideal f
Data download

Feedback
WeChat

QQ

Online Service

product details

PSL 5.0 Ultrasonic Level Controller Description：

User's Manual Datasheet

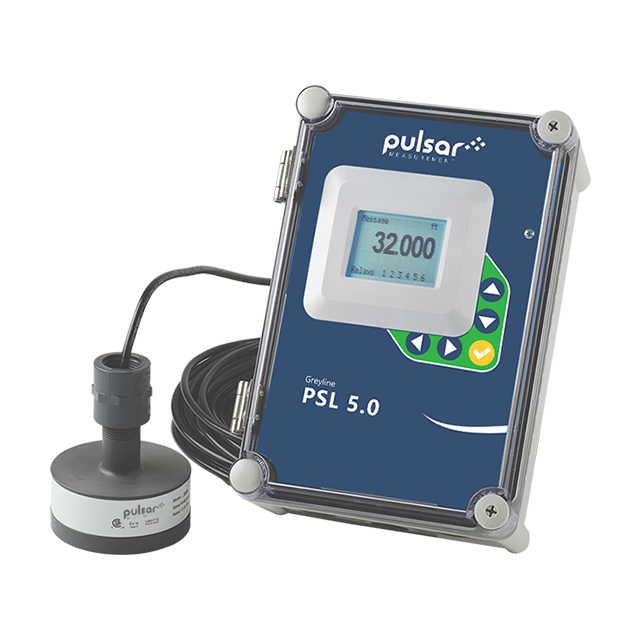

The PSL 5.0 Pump and Lift Station Level Controller is an ultrasonic level sensor that mounts above the liquid surface for accurate and reliable non-contacting level measurement. The PSL 5.0 is ideal for sewage pump stations, lift stations, wet wells, and tank level measurements. The unit includes six independently programmable control relays for pump or valve control, level alarms, dialers, temperature alarm, and echo loss alarms.

The easy-to-use simple menu system and built-in keypad can be used to program application parameters such as measurement ranges, relay set points, and pump alternation sequences. The PSL 5.0 also includes the ability to connect a submersible pressure sensor, or any other 4-20mA level sensor, for fail-safe hybrid sensing. Perfect for wastewater control, sump control, wet well level monitoring, and industrial applications where backup measurement sensors are required.

Features

Low Cost

Isolated 4-20mA Output (1000 ohm)

Large LCD Display

Programmable Signal Relay

Non-Contacting Ultrasonic Sensor or Optional Pressure Sensor

Built-in 2-Key Calibrator

Watertight, Dust-tight Enclosure

Specifications

Electronics Enclosure	NEMA4X (IP 66) polycarbonate with clear, shatterproof cover
Accuracy	±0.25% of range or 2 mm (0.08 in), whichever is greater
Display	white, backlit matrix - displays calibration menu, relay status, runtime reports, and sensor status
Calibration	Level or Range mode in selectable units
Programming	Built-in 5-button keypad, password protected
Power Input	100-240 V AC 50/60 Hz, 2.4-5.6 W depending on options
Outputs	Isolated 4-20mA, 1000 ohm
Control Relays	6 form 'C' dry contact relays rated 5 A SPDT; programmable level alarm and/or pump control modes, pump alternation/sequencing, failsafe/echo-loss, air temperature alarm
Surge Protection	AC power, 4-20mA, and ultrasonic sensor
Operating Temperature (Electronics)	-20 °C to 60 °C (-5 °F to 140 °F )

PZ34 Sensor Specifications
Maximum Range	10 m (32 ft) - optional sensors for longer ranges
Deadband (Blanking)	Programmable, Minimum 406 mm (16 in)
Beam angle	8° Locate 300 mm (1 ft) from wetwell sidewall for every 3 m (10 ft) depth
Operating Frequency	46 KHz
Exposed Materials	PVC
Operating Temperature	-40 °C to 65 °C (-40 °F to 150 °F)
Operating Pressure	0 bar to 1.35 bar (0 psi to 20 psi) maximum
Sensor Cable	RG62AU coaxial, 7.6 m (25 ft) standard length
