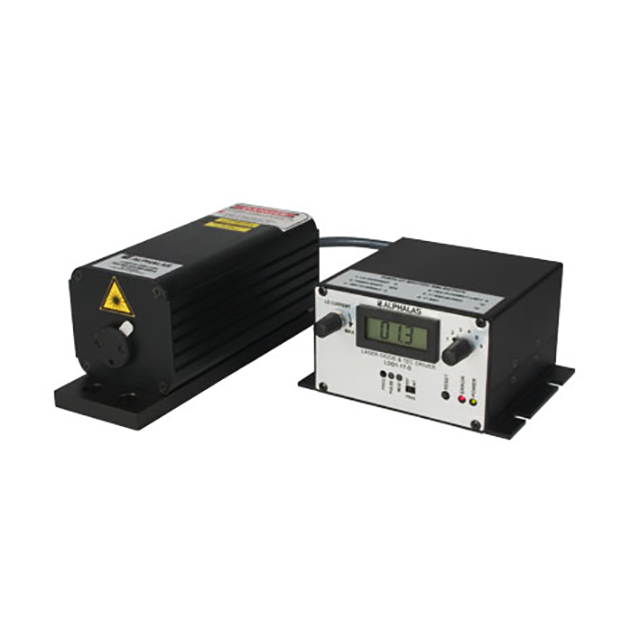

PULSELAS®-A Subnanosecond Actively Q-Switched DPSS Lasers

PULSELAS®-A Subnanosecond Actively Q-Switched DPSS Lasers Description：

Datasheet

A wide range of diode-pumped actively Q-switched lasers with pulse durations around 1 ns are offered by ALPHALAS. They feature high peak powers at various wavelengths in the infrared, visible and ultraviolet as well as excellent TEM00 beam profile.

The PULSELAS®-A series lasers implement proprietary Pockels cell design for generating extremely short laser pulses. The semi-monolithic laser cavity is permanently aligned and therefore extremely stable.

The multi-kilowatt laser pulses can be as short as 500 ps and have a jitter to external signal of typically 500 ps, with option down to 200 ps.

High-energy amplified laser systems (MOPA) deliver more than 1 mJ pulses resulting in the highest peak power >1 MW with pulse widths below 1 nanosecond.

Models with repetition rates from 10 kHz up to 100 kHz and average power ranging from 100 mW to >1 W are available.

The standard models with wavelengths 1047, 1053, 1062 and 1064 nm are complemented by lasers operating at 946 and 1342 nm with pulse durations < 5 ns. Optional frequency conversion to red (671 nm), green (532 nm), blue (473 nm) and ultraviolet (355 nm or 266 nm) is also available.

The compact design is perfectly suited for almost any system integration.

These unique lasers have an extremely broad spectrum of applications ranging from supercontinuum generation in photonic crystal fibers to laser-induced breakdown spectroscopy.

Features

Actively Q-Switched

Extremely Compact

Proprietary Electro-Optic Miniature Q-Switch Design

Subnanosecond Pulses at 1047, 1053, 1062 and 1064 nm

Extremely Low Jitter (typ. < 500 ps, optional 200 ps rms)

Pulse Energies up to 100 µJ (1 mJ with MOPA)

Peak Powers up to 150 kW

Repetition Rates up to 100 kHz

Average Powers above 1 W

Frequency Conversion to 266, 355, 473, 532 and 671 nm (Option)

Applications

Material Processing

Micromachining

Marking & Cutting of Extremely Hard Materials (e.g. Diamonds)

Nonlinear Optics

Supercontinuum Generation

Time-Resolved Fluorescence Measurements

DNA-Analysis

LIDAR & Laser Ranging

Pollution Monitoring

Laser-Induced Breakdown-Spectroscopy (LIBS)

Ignition of Explosives, Combustion Machines & Gas Mixtures
