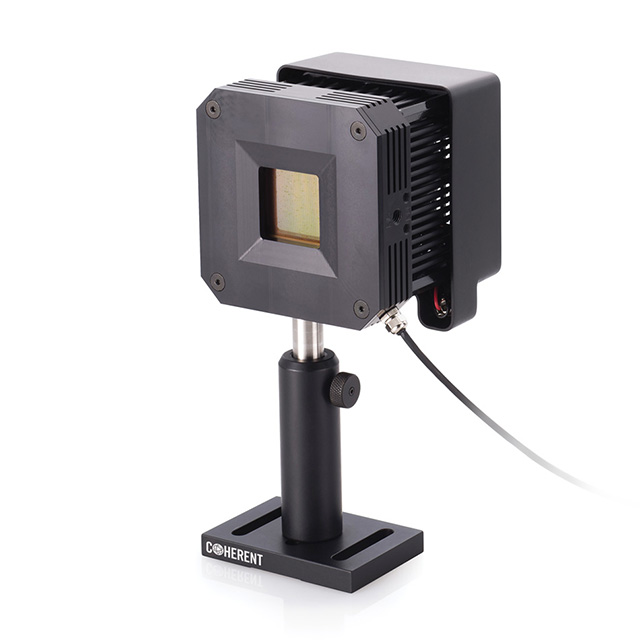

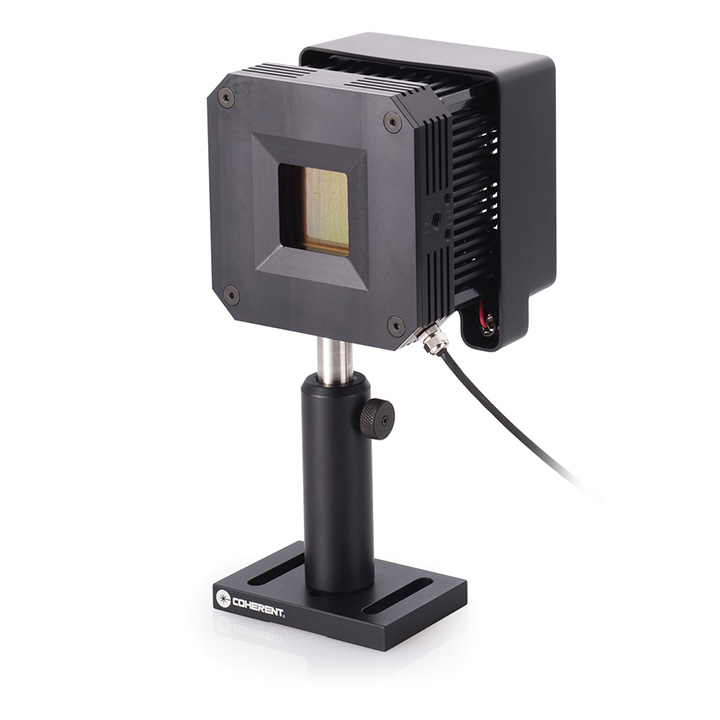

Coherent PowerMax-Pro 150F HD ‘nano’ Fast Power Sensor

Updated:2024-11-28

Brand: Coherent
Model: PowerMax-Pro 150F HD ‘nano’
Description: This PowerMax-Pro 150F HD ‘nano’ sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model has a reduced bandwidth intended for measuring nanosecond, p
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-Pro 150F HD ‘nano’ Fast Power Sensor Description：

Datasheet

This PowerMax-Pro 150F HD ‘nano’ sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model has a reduced bandwidth intended for measuring nanosecond, picosecond, and femtosecond lasers up to 150W. The 150F model designator represents a fan-cooled model.

The sensor is terminated in a SmartProbe DB25 cable and requires the LabMax-Pro SSIM meter (PN 1268881) to take advantage of its high-speed features. A USB-direct model (PN 1330510) is available.

Fast, thin-film transverse thermoelectric, fan-cooled power sensor for measuring lasers between 100 mW and 150W. This “nano” model is designed for nanosecond, picosecond, and femtosecond lasers up to 150W.

Key Features:

100 mW to 150W range

Fast thin-film detector

350 µsec rise time

30x30 mm active area

400 nm to 1100 nm; 9 µm to 11 µm spectral range

Fan-cooled

ISO 17025 accredited

Specifications

Cable Type

DB-25

Cooling Type

Fan

Active Area Size

30 x 30 mm

Detector Coating

Power Range for Continuous Usage Air Cooled

100 mW to 150W

Power Range for Continuous Usage Water-cooled

Not applicable

Wavelength Range

400 nm to 1100 nm; 9 µm to 11 µm

Max Peak Power (for modulated lasers)

200 for >1 µs (not applicable for ns, ps, fs lasers)

Maximum Intermittent Power (watts) (air-cooled <5 minutes)

150

Noise Equivalent Power (milliwatts) Standard Mode

Noise Equivalent Power (milliwatts) High Speed Mode

Noise Equivalent Power (milliwatts) Snapshot Mode

Maximum Power Density (kilowatts per square centimeter)

0.2 (at 150W)

Max. Peak Power Density (kilowatts per square centimeter)

Rise Time (microseconds)

≤350

Minimum Beam Size (millimeters)

2.0 (1.0 mm - up to 3% error)

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±3

Spectral Compensation Accuracy (%)

±3

Calibration Wavelength (nanometers)

801

Cable Length (meters)

2.5 (8.2 ft.)

Spatial Uniformity (%)(center 75% of aperature; 2.5 millimeter beam)

±5

Max. Energy Density

33 (10 ns; 1064 nm)
