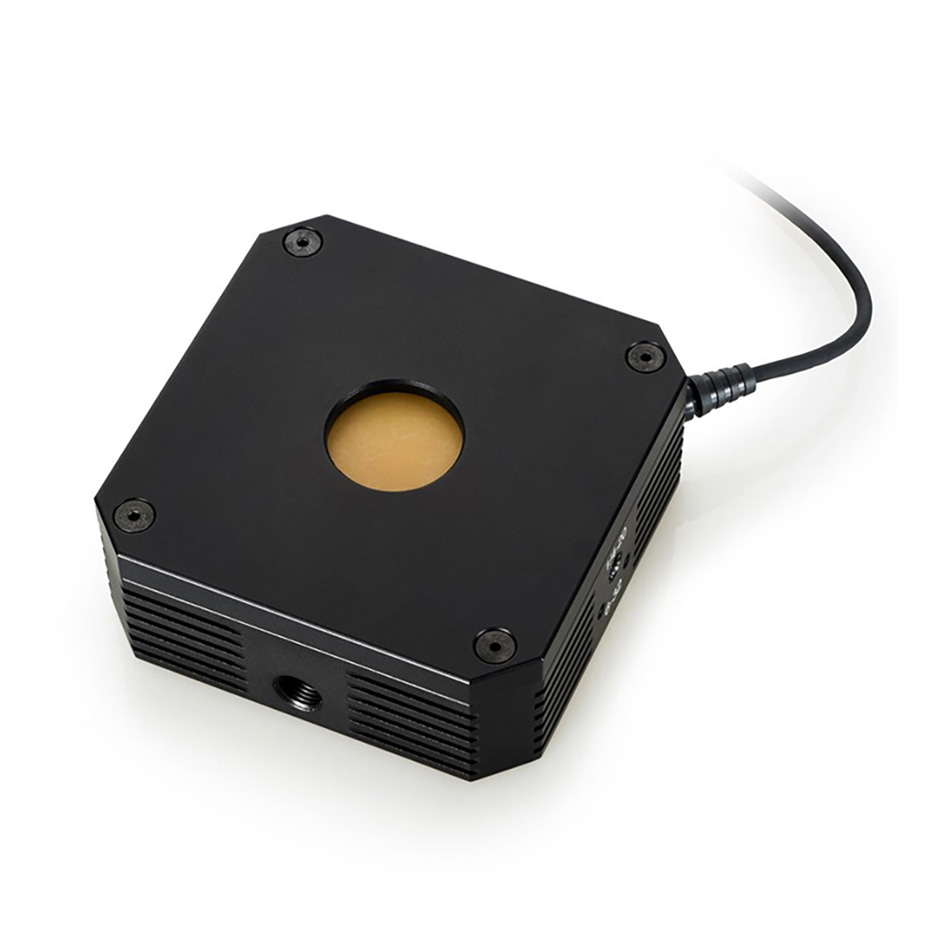

Coherent PowerMax-Pro HP Fast Power Sensor

Coherent PowerMax-Pro HP Fast Power Sensor Description：

Datasheet

This PowerMax-Pro HP sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model incorporates a ZnSe diffuser to enable higher powers and can handle up to 350W average power with water-cooling, 22W average power air-cooled, and up to 15 kW peak power for durations less than 100 milliseconds for measurement of short laser bursts without water cooling.

The sensor is terminated in a SmartProbe DB25 cable and requires the LabMax-Pro SSIM meter (PN 1268881) to take advantage of its high-speed features. A USB-direct model (PN 1315456) is available.

Fast, thin-film transverse thermoelectric, water-cooled power sensor with diffuser for measuring lasers between 1W and 350W. Can handle up to 15 kW for durations less than 100 msec to enable rapid measurement of laser bursts without water cooling.

1 to 350W fast power sensor, up to 15 kW peak power, water-cooled, 700 nm to 1070 nm; 10.6 µm spectral range, 25 mm maximum beam size. Can handle up to 15 kW for durations less than 100 msec to enable rapid measurement of laser bursts without water cooling.

Key Features:

1 to 350W range

Up to 15 kW peak power

Fast thin-film detector

ZnSe diffuser to increase power handling

10 µsec rise time

25mm diameter maximum beam size

700 nm to 1070 nm; 10.6 µm spectral range

Water-cooled; (up to 22W air-cooled)

ISO 17025 accredited
