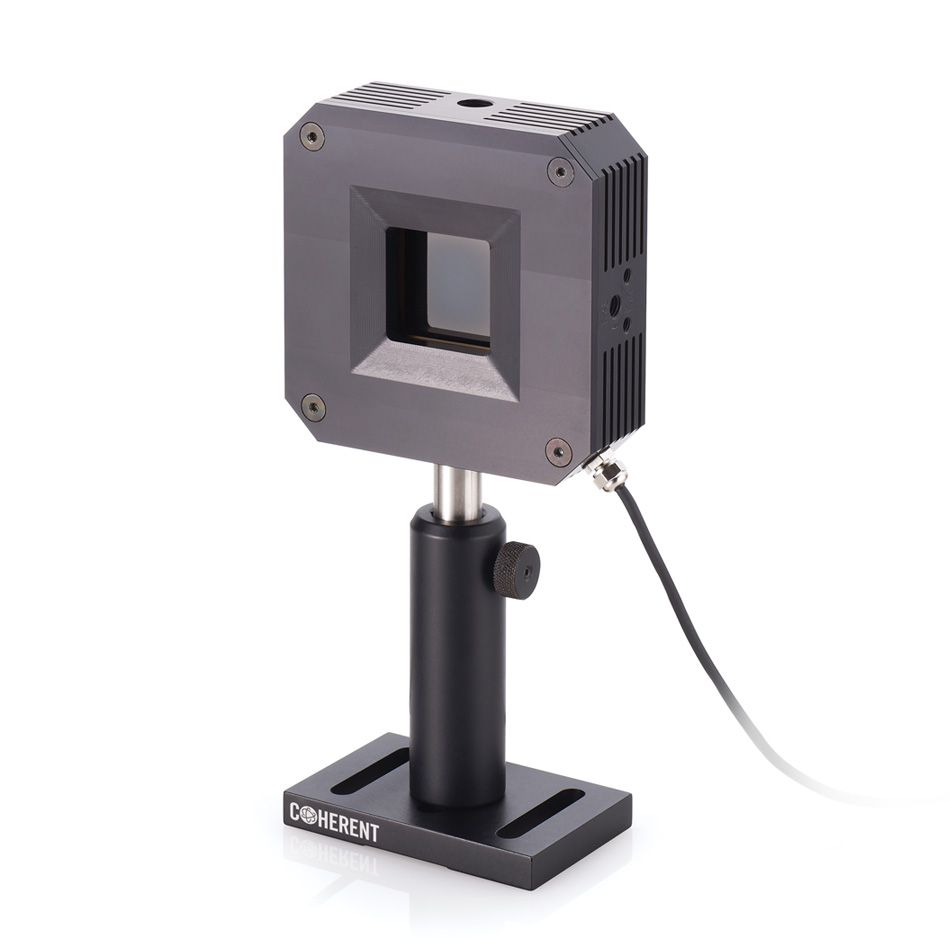

Coherent PowerMax-Pro RS 150F BB Fast Power Sensor

Updated:2024-11-29

Brand: Coherent
Model: PowerMax-Pro RS 150F BB
Description: This PowerMax-Pro RS 150F BB sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model utilizes a flat, broadband coating and is intended for measurin
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-Pro RS 150F BB Fast Power Sensor Description：

Datasheet User's Manual

This PowerMax-Pro RS 150F BB sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model utilizes a flat, broadband coating and is intended for measuring lasers up to 150W. The 150F model designator represents a fan-cooled model.

The sensor is terminated in an RS232 cable for directly interfacing with a PC or industrial controller. A DB25 model (PN 1323848) is available.

Fast, thin-film transverse thermoelectric, fan-cooled power sensor with flat broadband coating for measuring lasers between 200 mW and 150W. Direct RS232 interface.

Key Features:

200 mW to 150W range

Fast thin-film detector

50 µsec rise time

30x30 mm active area

Spectrally flat broadband coating

4 to 11 µm spectral range

Fan-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Cooling Type

Fan

Active Area Size

30 x 30 mm

Detector Coating

Power Range for Continuous Usage Air Cooled

200 mW to 150W

Power Range for Continuous Usage Water-cooled

Not applicable

Wavelength Range

400 nm to 11 µm

Max Peak Power (for modulated lasers)

200W (> 1 µsec pulses)

Maximum Intermittent Power (watts) (air-cooled <5 minutes)

Noise Equivalent Power (milliwatts) Standard Mode

Noise Equivalent Power (milliwatts) High Speed Mode

Noise Equivalent Power (milliwatts) Snapshot Mode

Maximum Power Density (kilowatts per square centimeter)

0.2 (at 150W)

Max. Peak Power Density (kilowatts per square centimeter)

Rise Time (microseconds)

≤50

Minimum Beam Size (millimeters)

2.0 (1.0 mm - up to 3% error)

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±5

Spectral Compensation Accuracy (%)

±3

Calibration Wavelength (nanometers)

801

Cable Length (meters)

4.2m (13.8 ft.)

Spatial Uniformity (%)(center 75% of aperature; 2.5 millimeter beam)

±5

Max. Energy Density

33 (10 ns; 1064 nm)
