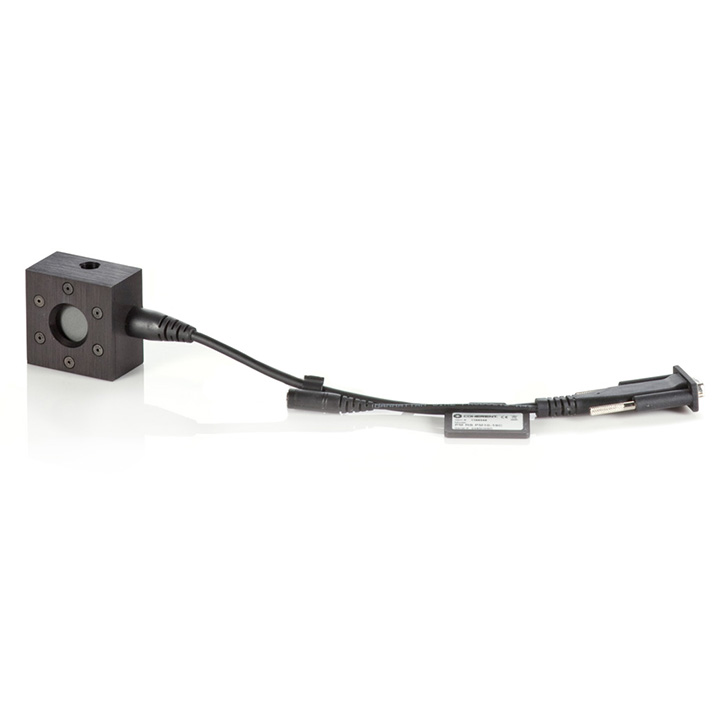

Coherent PowerMax-RS PM150-19C Compact Water-cooled Laser Power Sensor

Updated:2024-11-08

Brand: Coherent
Model: PowerMax-RS PM150-19C
Description: This PowerMax-RS PM150-19C sensor is a compact water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 20W without water for short durations (up to five minutes
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS PM150-19C Compact Water-cooled Laser Power Sensor Description：

Datasheet User's Manual

This PowerMax-RS PM150-19C sensor is a compact water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 20W without water for short durations (up to five minutes at a time).

The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. DB25 (PN 1098444) and USB direct (PN 1288940) models are available.

Compact water-cooled thermopile sensor for measuring pulsed & CW lasers between 300 mW and 150W. It can be used to measure 20W without water, intermittently, for up to five minutes. Direct RS232 interface.

Key Features:

300 mW to 150W range

19 mm diameter active area

Spectrally flat broadband coating

0.19 to 11 µm spectral range

Water-cooled

Direct RS232 interface

ISO 17025 accredited

Specification

Cable Type

RS232

Cooling Type

Water, Air (intermittent)

Power Range

300 mW to 150W (water-cooled)

Active Area Diameter

19 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

20, air-cooled

Long-Pulse Joules Range (joules)

1 to 150

Wavelength Range (micrometers)

0.19 to 11 µm

Maximum Power Density (kilowatts per square centimeter)

6 kW/cm²

Maximum Energy Density (millijoules per square centimeter)

600 (1064 nm, 10 ns)

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

0.3
