Data Logger - Rotronic RMS-LOG-T30-L

Updated:2023-10-30

Brand: PST/Rotronic
Model: RMS-LOG-T30-L
Product description: The RMS-LOG-T30 is a data logger with two integrated analog-to-digital converters, to which two PT100 sensors can be connected for high-precision temperature measurement. The measuring accuracy of the
Data download

Feedback
WeChat

QQ

Online Service

product details

Data Logger - Rotronic RMS-LOG-T30-L Description：

User's Manual

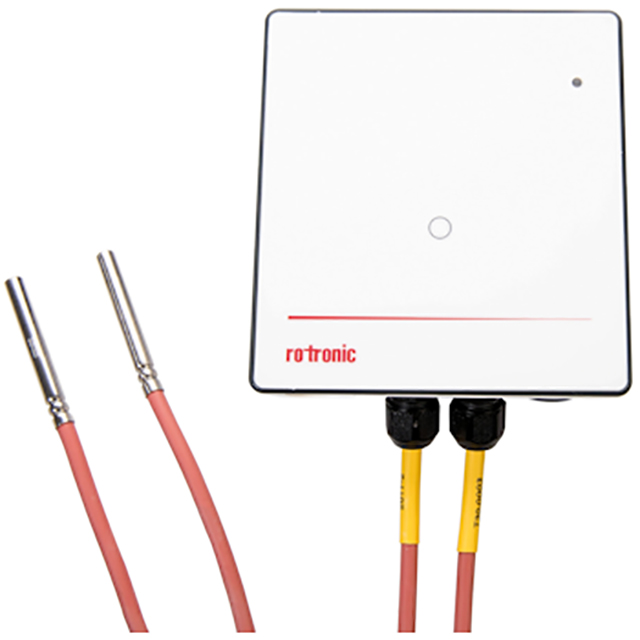

The RMS-LOG-T30 is a data logger with two integrated analog-to-digital converters, to which two PT100 sensors can be connected for high-precision temperature measurement. The measuring accuracy of the data logger with PT100 can be improved by a 1- or 2-point adjustment. The data logger stores 44,000 pairs of measured values and sends them to the RMS database via LAN or wireless interface.

Specifications

Accuracy (@23 °C, without PT100)	±0.1 °C (-100 °C to 200 °C) / ±0.2 °C (-200 °C to 850 °C)
Range of application	-40…70 °C / 0...100 %RH
AC adapter requirements	24 VDC ±10 % / >4 W / power-limited
Battery lifetime	23 °C, 60 s interval, 2.4 years
Interface	Ethernet
Measured parameters	2-, 3- and 4-wire RTD measurement
Number of measuring points	2 x PT100 probes
Measurement interval	10 s to 15 min
Ethernet cable requirement	Min. Cat 5, SFTP, max. 30 m
Protocols	HTTP / Modbus TCP
Fire protection class	UL94-V2
Housing	PC / ABS
FDA / GAMP	FDA 21 CFR part 11 / GAMP5
Storage and transport conditions	-20...30 °C / 0...95 %RH
Dimensions	105 x 113 x 38 mm
IP protection class	IP65
Weight	240 g
