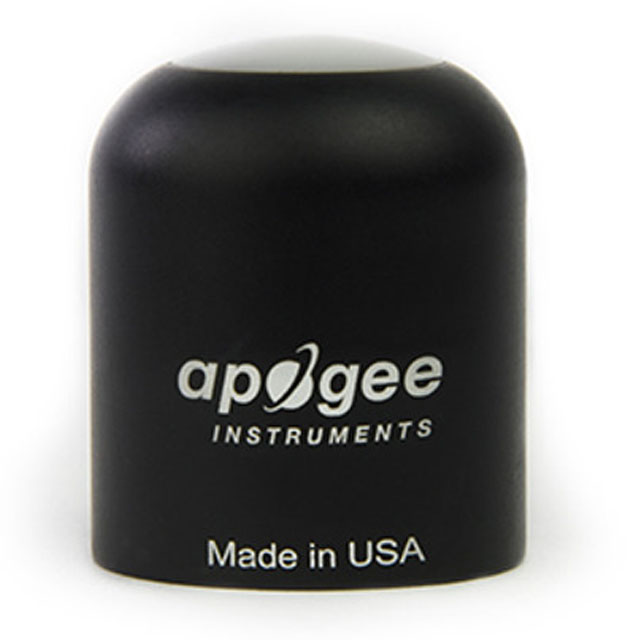

S2-442 Modbus Digital Output PAR-FAR Sensor

Updated:2023-05-30

Brand: APOGEE
Model: S2-442
Product description: The S2-442 PAR-FAR sensor is a unique two-channel digital sensor for measuring both the PAR (PPFD) and Far-red outputs of electric grow lights with Modbus communication protocol. The sensor features a
Data download

Feedback
WeChat

QQ

Online Service

product details

S2-442 Modbus Digital Output PAR-FAR Sensor Introduction：

Specification Sheet

The S2-442 PAR-FAR sensor is a unique two-channel digital sensor for measuring both the PAR (PPFD) and Far-red outputs of electric grow lights with Modbus communication protocol. The sensor features a rugged, aluminum housing that is fully-submersible and built to withstand harsh conditions, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor cable includes an IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement from permanent installations for maintenance and calibration. Typical applications of PAR-FAR sensors include measuring both the traditional PPFD photosynthetic photon flux and separately quantifying the photon flux of far-red photons (700-750 nm). The outputs include the traditional quantum flux, the far-red photon flux, and the far-red fraction (far-red photon flux density / sum of PPFD and far-red photon flux density). This sensor quantifies far-red photons, and for many applications it reduces the need for a more complex measurement with a spectroradiometer.

S2-442 Modbus Digital Output PAR-FAR Sensor drawing：

S2-442 Modbus Digital Output PAR-FAR Sensor Specifications:

Power Supply	5.5 to 24 V DC
Current Draw	RS-232 37 mA; RS-485 quiescent 37 mA, active 42 mA
Calibration Factor (reciprocal of sensitivity)	Custom for each sensor and stored in firmware
Calibration Uncertainty	± 5 %
Measurement Repeatability	Less than 1 %
Long-term Drift	Less than 2 % per year
Non-linearity	Less than 1 % (up to 4000 µmol m⁻² s⁻¹) (PAR); Less than 1 % (up to 1000 µmol m⁻² s⁻¹) (Far-Red)
Field of View	180˚
Wavelength Ranges	389 to 692 nm ± 5 nm (PAR); 700 to 750 nm ± 5 (Far-Red)
Directional (Cosine) Response	± 2 % at 45˚; ± 5 % at 75˚ zenith angle
Temperature Response	Less than 0.1 % per C
Housing	Anodized aluminum body with acrylic diffuser
IP Rating	IP68
Operating Environment	-40 to 70 C; 0 to 100 % relative humidity
Dimensions	30.5 mm diameter, 37 mm height
Mass (with 5 m of cable)	140 g
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
