SIF-121: Research-Grade High Speed, Narrow Field of View Infrared Radiometer

Updated:2023-05-08

Brand: Apogee
Model: ECT
Product description: The SIF-121-SS is a fast response model infrared radiometer with a 0.2 second response time. The analog sensor is un-amplified and has a voltage output and high-quality cable terminating in pre-tinned
Data download

Feedback
WeChat

QQ

Online Service

product details

SIF-121: Research-Grade High Speed, Narrow Field of View Infrared Radiometer Functional Characteristic：

User's Manual Technical Drawing

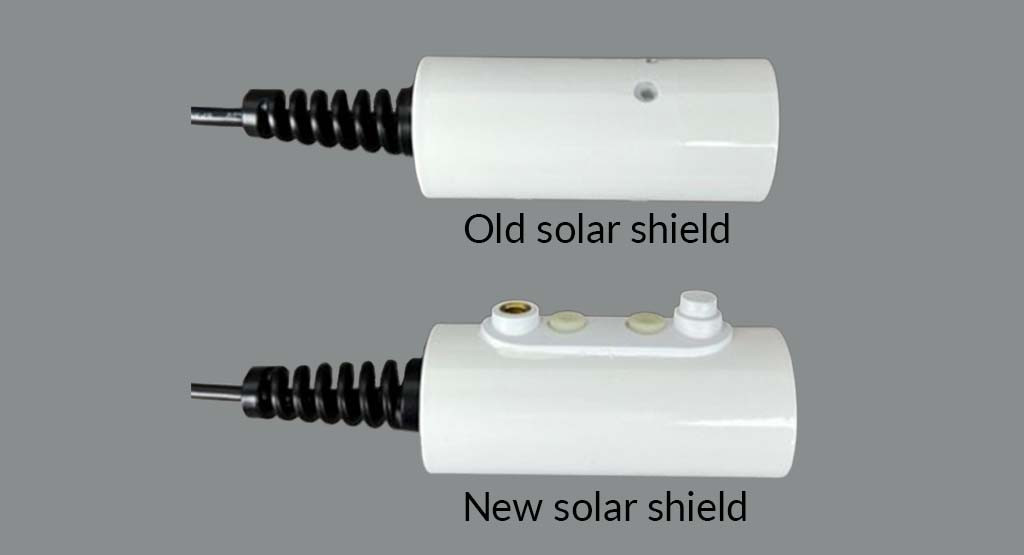

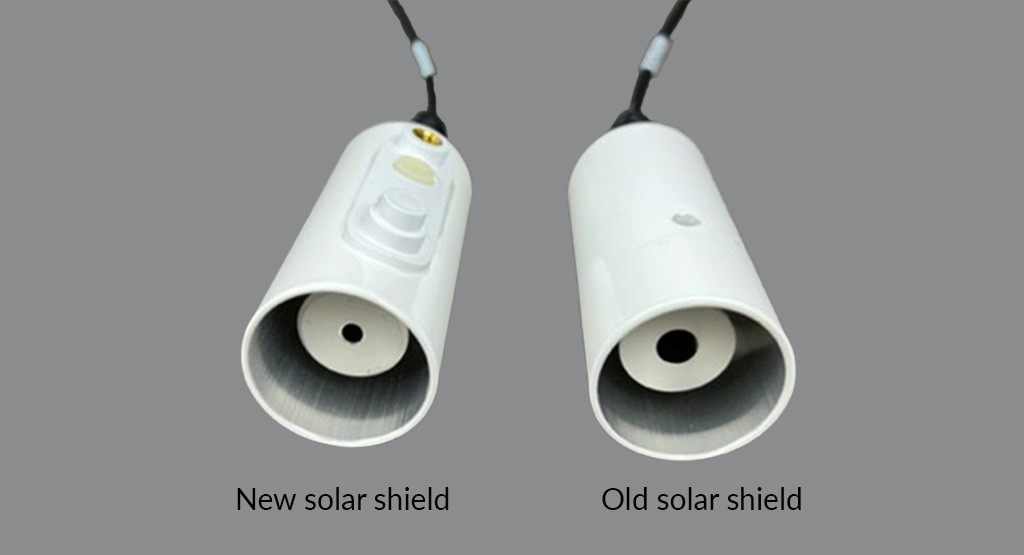

The SIF-121 is a fast response model infrared radiometer with a 0.2 second response time. The analog sensor is un-amplified and has a voltage output and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor has a 18° half-angle field of view. Typical applications include plant canopy temperature measurement for use in plant water status estimation, phenotyping, phenomics, road surface temperature measurement of determination of icing conditions, and terrestrial surface (soil, vegetation, water, snow) temperature measurement in energy balance studies. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration. The SIF-121 is designed to be mounted with an Apogee AM-250 commercial-grade mounting bracket.

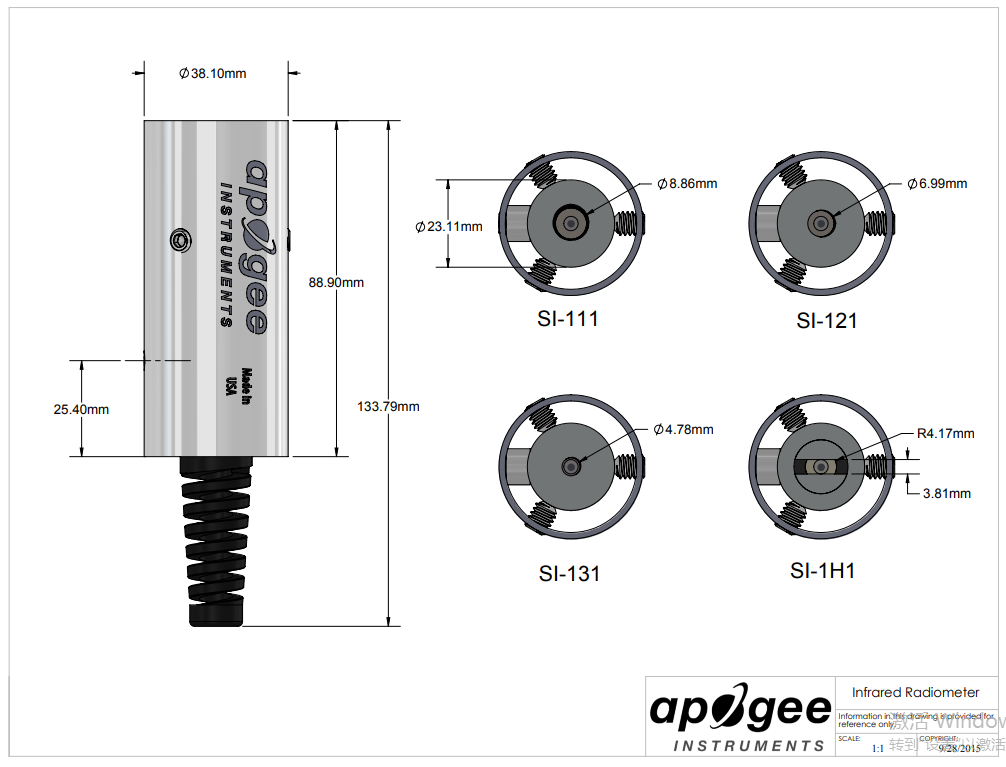

SIF-121: Research-Grade High Speed, Narrow Field of View Infrared Radiometer Drawing：

SIF-121 Drawing

SIF-121: Research-Grade High Speed, Narrow Field of View Infrared Radiometer Specification：

Approximate Sensitivity	10 µV per C
Output from Thermopile	Approximately -0.55 to 0.55 mV for a temperature difference from -55 to 55 C
Output from Thermistor	2500 mV excitation (typical, other voltages can be used)
Input Voltage Requirement	0 to 2500 mV (typical, depends on input voltage)
Calibration Uncertainty (-30 to 65 C)	0.2 C
Calibration Uncertainty (-40 to 80 C)	0.5 C
Measurement Repeatability	Less than 0.05 C
Stability (Long-term Drift)	Less than 2 % change in slope per year when germanium filter is maintained in clean condition%
Response Time	0.2 s, time for detector signal to reach 95 % following a step change
Field of View	18˚ half angle
Spectral Range	8 to 14 µm; atmospheric window
Operating Environment	-50 to 80 C; 0 to 100 % relative humidity (non-condensing)
Dimensions	23 mm diameter, 60 mm length
Mass	190 g (with 5 m of lead wire)
Cable	5 m of shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions), additional cable available
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
