SLA-Series Two-Channel Universal LED Drivers with Manual & Analog-Input Controls

SLA-Series Two-Channel Universal LED Drivers with Manual & Analog-Input Controls Description：

Datasheet

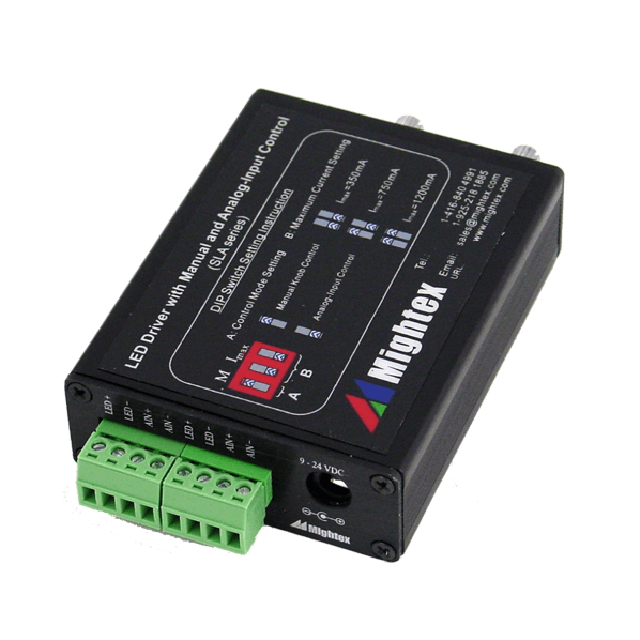

Mightex’s SLA-series two-channel universal LED drivers are designed to drive a broad range of LED light sources. These LED drivers have two control modes:

Manual Knob Control Mode: the current output of each channel can be adjusted manually

Analog Input Control Mode: the current output of each channel can be controlled via 0~5V analog input.

The control mode is set via a DIP switch, and the factory default setting is “Manual Knob Control Mode”. The drivers also have a Maximum Current Setting DIP Switch, which allows user to set the maximum current to different levels, in order to prevent LED damage due to overdriving. The factory default setting is 30mA for SLA-0100-2, and 350mA for both SLA-1000-2 and SLA-1200-2. When the Maximum Current Setting DIP Switch is set at a smaller value (e.g. 350mA), the LED driver has a finer resolution for the output current.When the driver is set to “Analog Input Control Mode”, the output current is proportional to the voltage of the analog input signal. The operational mode and the current limit of each channel can be set independently from each other.

FEATURES:

Dual control modes: manual or analog-input

Universal – suitable for any LED

Tiered maximum output current settings to prevent overdrive

Capable of driving variable loads

APPLICATIONS

Microscopy

Lighting

Machine vision

Displays

Semiconductor equipment

Test instruments

Medical instruments

ELECTRICAL SPECIFICATION

1. Maximum Output Voltage is 3V less than the Power Supply Input Voltage, i.e. Vmax = Vdc – 3V. For instance, with a Power Supply Input Voltage of Vdc= 24V, the Maximum Output Voltage Vmax would be (Vdc- 3V) = 21V;
2. If the channel output voltage is Vd and the output current is Id, they must simultaneously satisfy: (1) Vd <= Vmax ; (2) Id <= Imax; and (3) Vd * Id <= Pmax.
3. With both switches flipped on top, Imax is 1,200mA for SLA-1200-2, 1,000mA for SLA-1000-2 and 100mA for SLA-0100-2. With both switches flipped bottom, Imax is 30mA for SLA-0100-2, and 350mA for both SLA-1200-2 and SLA-1000-2. With one switch flipped on top and the other at bottom Imax is 50mA for SLA-0100-2, 500mA for SLA-1000-2 and 750mA for SLA-1200-2.
