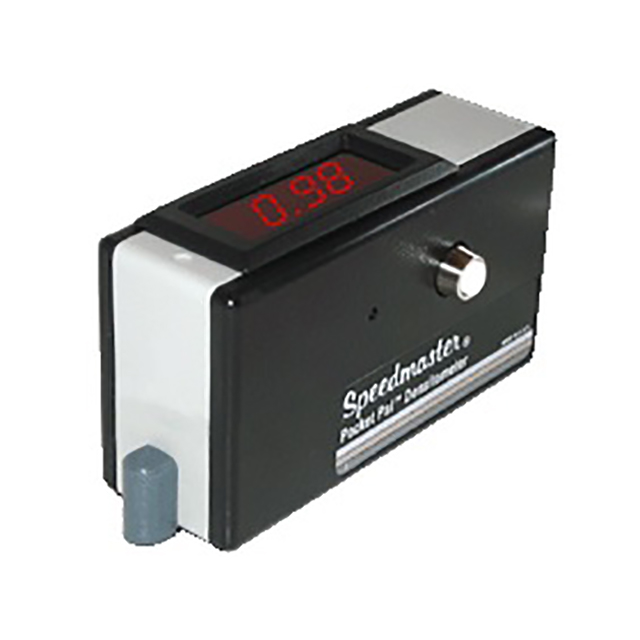

Speedmaster SM-14 Digital Densitometer

Speedmaster SM-14 Digital Densitometer Description：

Datasheet

The Speedmaster® SM-14 Digital Densitometer is designed to meet the need for an accurate and affordably priced instrument to measure any film directly from a viewer. The benefit of over 46 years of ESECO’s experience in designing and building reliable quality instruments has been applied to the portable SM-14.

The proprietary technology employed assures instant, accurate and repeatable results that rivals the same high standards of more expensive units. Featuring total accuracy of +/- .02 from 0.00 to 4.00 Optical Density.

Low power consuming components and extended battery life feature are provided in the automatic “stand-by”

The rugged durability, minimal drift and no warm up time provide fast dependable readings. With the film on your viewer, place the SM-14’s “EASY READ” probe over the area to be read then push the read button. The large digital meter instantly displays the reading. It will return to the energy saving “stand-by” mode automatically. This unit requires a film viewer.

Backed by ESECO’s established ONE YEAR “NO HASSLE” WARRANTY makes the Speedmaster SM-14 the ideal cost-effective choice for reading film on a viewer.

Measuring Range 0.00 to 4.00 D

Accuracy ± 0.02 D / Repeatability ± 0.01 D

No Warm-up Time

Portable Power Source (9-volt Alkaline Battery Included)

Weight 5.9 oz. / 167.2 grams

Dimensions Height: 2.5 Inches (6.35 cm) / Width: 1.5 Inches (3.81 cm) Length: 4.75 Inches / (12.06 cm)
