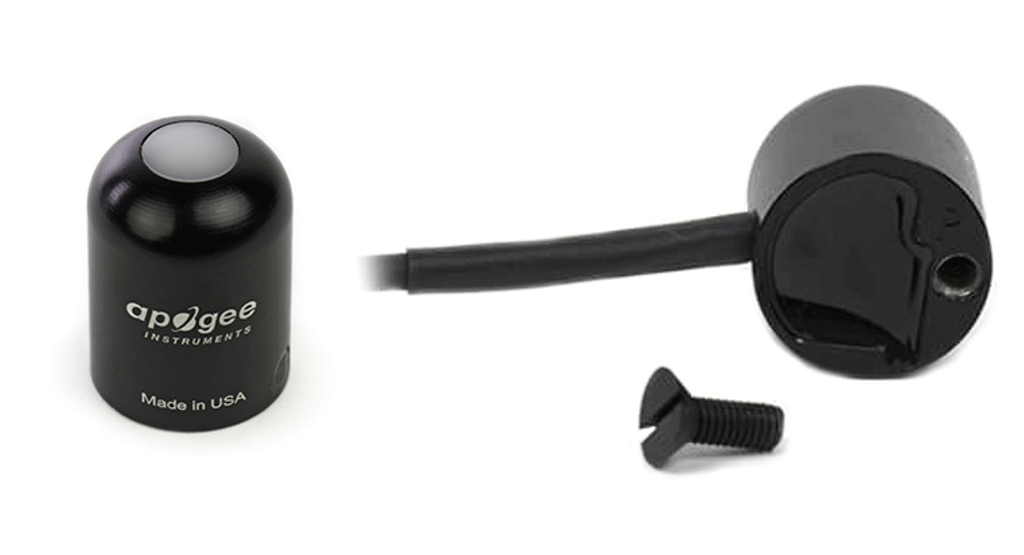

SP-420 Smart Pyranometer | USB Output

Updated:2022-12-23

Views:1070

  • Brand: APOGEE
  • Model:SP-420
  • Description: The new SP-420 smart pyranometer can be connected directly to a computer (Windows or macOS X) for taking spot measurements or graphing and datalogging real-time shortwave radiation using the included
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

SP - 420 intelligent total radiation table overview | USB output:

User's Manual

Internal Data Storage

The sensor has internal data storage capability with the ability to hold up to 10,000 measurements. This allows the sensor to collect data while connected to a stand-alone 5 V DC power supply such as a USB wall adapter.

No Datalogger Required

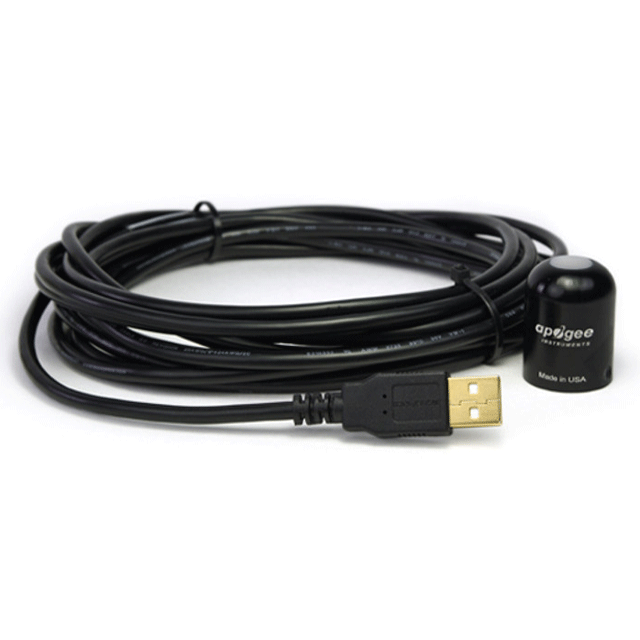

The sensor can be connected to a desktop or laptop computer via USB 2.0 type A plug, to be used with the ApogeeConnect software (Windows compatible, XP and later; Mac compatible, 10.10 and later). The included Apogee software gives the user control of data logging and calibration settings, provides a real time output display and graph of shortwave radiation measurements and allows the data set to be saved as a csv file.

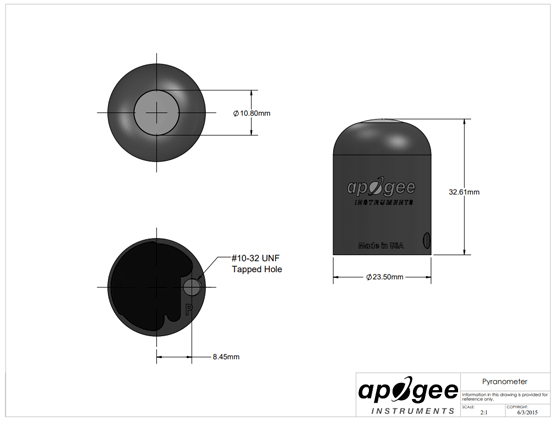

SP-420 drawing:

Specifications of SP-420:

ISO 9060:2018 Class C (fast response)
Power Supply 5 V
Current Draw 61 mA when logging
Resolution 0.1 W mˉ²
Calibration Factor Custom for each sensor and stored in firmware
Calibration Uncertainty at 1000 W mˉ² Less than 3 %
Measurement Repeatability Less than 1 %
Non-stability (Long-term Drift) Less than 2 % per year
Non-linearity Less than 1 % (up to 2000 W mˉ²)
Response Time Software updates every second
Field of View 180˚
Spectral Range 360 to 1120 nm (wavelengths where response is 10 % of maximum)
Directional (Cosine) Response ± 5 % at 75˚ zenith angle
Temperature Response 0.04 ± 0.4 % per C
Operating Environment -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
Dimensions 24 mm diameter, 33 mm height
Mass 90 g
USB Cable 4.5 m (15 ft)
Warranty 4 years against defects in materials and workmanship
Manufactured Made in the USA
